ENVEA (ex Environnement S.A) - Model E-Series -Ecodesigned Criteria Pollutant Analyzers
FromENVEA
Dedicated to the measurement of regulated pollutants such as ozone (O3), carbon monoxide (CO), sulfur dioxide (SO2), nitrogen oxides (NO- NO2 and NOx), and particulates PM10 and PM2.5, the e-Series of analysers, has been designed with a special consideration to the environmental impacts of the product during its whole lifecycle.Most popular related searches
air quality monitoring
NDIR hydrocarbons
air quality monitoring gas
ambient air quality monitoring
indoor air quality monitoring
EN 15267
EPA 40 CFR
UV fluorescence SO2
volatile organic compounds
ambient air quality

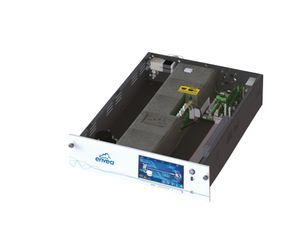

- The measurement modules of the e-Series are fitted in closed cell 100% recyclable expanded polypropylene foam (EPP*) that has outstanding cushioning properties, high strength-to-weight ratio, efficient thermal and electrical insulation and provides easier access for service and maintenance, or for recycling the product at its end-of-life.
- Polluting components have been fully eliminated: the O342e is the 1st ozone analyzer on the market which does not use Mercury lamp as excitation source
- As the lifetime energy use and environmental aspects have been taken into account during the conception and design phases, over 95% of each e-Series analyzer can be recycled.
- The analyzers are very compact, lightweight and have a low carbon footprint: up to 82% less than other criteria pollution monitor on the market.
- Engineered with breakthrough technologies, the e-Series achieve a previously unreachable level of autonomy: it also integrates self diagnosis and a high level of self-operation
- Service assistant Inside : Each analyzer is self monitored continuously for performance and fault control: it detects early signs of trouble, identifies the service needed and even guides the service operations!
*EPP is 100% recyclable and does not support microbial growth. Manufacturing EPP requires no Volatile Organic Compounds, chlorofluorocarbon or other compounds that are recognized as most harmful to the environment.
- Ambient air quality monitoring
- Indoor air quality continuous monitoring
- Mobile and fixe monitoring stations
- Traffic stations: near-road, tunnels, canyon streets
- Medical gases measurements...
- NO - NO2 measurement according to the European Directive 2008/50/CE
- Sustainable eco-design
- Low carbon footprint
- Low power consumption
- Long lifespan, excellent accuracy
- Reliable electronics
- Economic, easy and reduced maintenance
- Common electronic boards: optimized spare parts stock
- Interactivity: Smart, connected instruments. the ESA ConnectTM user interface allows remote, simultaneous multichannel viewing and control of the monitor from any PC, tablet or smartphon
- Real-time animated synoptics, auto-diagnostic, control and maintenance data screens displayed while the instrument is operating…
O342e - UV photometry LED based Ozone analyzer
- US-EPA - Automated Equivalent Method : EQOA-0515-225
- QAL1 certified to EN 14625 and EN 15267 by the TUV Certificate N° 0000043106
- Compliance with: EN 14625, EN 15267, ISO 13964, 40 CFR part 53 SUB B & SUB C
CO12e - Non dispersive Infra Red CO / CO2 analyzer
- US-EPA - Automated Reference Method : RFCA-0915-228
- QAL 1 certified by the TUV to EN 14626
- Compliance with: EN 14626, EN 15267, ISO 4224, 40 CFR part 53 SUB B & SUB C
AF22e - UV Fluorescent SO2 analyzer
- US-EPA approved - Automated Equivalent Method : EQSA-0802-149
- QAL1 certified by the TÜV to EN 14212
- Compliance with: EN 14212, EN 15267, ISO 10498, 40 CFR part 53 SUB B & SUB C
AC32e - Chemiluminescence NO-NOx & NO2 analyzer
- ISO 7996, EN 14211 (2012), EN 15267 (2009), 40 cfr part 53 & part 58
- QAL 1 certified by the TÜV to N° 0000053805
- U.S. EPA approved as compliant with RFNA-0118-249
