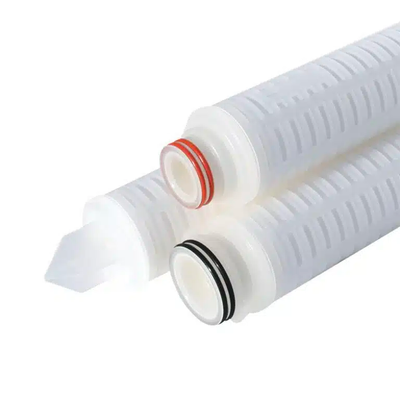

Econe - Polyethersulfone (PES) Filter Cartridge
A PES filter cartridge is a pleated filtration element made from hydrophilic polyethersulfone (PES) membrane, designed for high-purity liquid filtration. PES membrane filters are widely recognized for their high flow rates, low protein binding, and excellent microbial retention efficiency.
-
Sterile-Grade Filtration: PES (Polyethersulfone) membrane filter cartridges are ideal for critical applications like pharmaceuticals, biotech, and laboratory filtration.
-
Hydrophilic Membrane: Our PES filters require no pre-wetting and offer fast wettability, reducing downtime in sterile filtration systems.
-
Excellent Flow Rate: Designed with uniform pore structure for low pressure drop and high throughput.
-
Broad Chemical Compatibility: Resistant to a wide range of solvents, making them suitable for complex liquid filtration processes.
-
Certified Quality: Manufactured in ISO-certified cleanrooms using FDA-compliant materials. Full traceability and documentation available.
What is PES Filter Cartridge
These cartridges are engineered to remove bacteria, particles, and other impurities from fluids in sensitive applications such as pharmaceuticals, laboratory processes, food & beverage production, and medical device manufacturing. Unlike PTFE or PVDF membranes, PES filters do not require pre-wetting, which enhances operational efficiency and cost savings.
The pleated design increases surface area, extending filter life and reducing frequency of replacement. They are typically used as final-stage filters in critical liquid processing systems, especially where sterility and consistency are essential.
Available in various micron ratings such as 0.1μm, 0.2μm, and 0.45μm, PES filter cartridges are compatible with most industry-standard housings, including 222 and 226 end caps. Whether for small lab systems or industrial-scale sterile production, PES pleated filters provide reliable and repeatable performance.
Details refer to Econe Filtration
-
High Retention Efficiency: Capable of removing >99.99% of bacteria and fine particulates at 0.2μm and 0.1μm levels.
-
Hydrophilic PES Membrane: Allows easy wetting without surfactants, improving ease of use in sterile systems.
-
Low Protein Binding: Ideal for biological and pharmaceutical processes where product loss must be minimized.
-
Long Service Life: Pleated configuration increases filtration surface area, enhancing dirt-holding capacity.
-
Fast Flow Rate & Low Pressure Drop: Minimizes energy consumption and improves process throughput.
-
Thermally Bonded Construction: No adhesives, binders, or glues – ensuring high purity and compatibility.
-
Gamma Sterilizable & Autoclavable: Suitable for CIP/SIP operations in GMP environments.
-
Compliance Ready: Manufactured under ISO 9001/13485 systems, FDA-approved raw materials, and full documentation.
PES pleated filter cartridges are specially designed for applications requiring absolute cleanliness, sterility, and high flow performance. Key industries and uses include:
-
Pharmaceutical Manufacturing: Final filtration of injectable drugs, eye drops, IV fluids.
-
Biotechnology: Sterile filtration of media, buffers, cell cultures.
-
Medical Devices: Liquid filtration for diagnostic reagents and rinsing fluids.
-
Laboratories: Sterile filtration of biological samples and culture media.
-
Food & Beverage: Microbiological control in bottled water, wine, and beer.
-
Microelectronics: Pre-filtering ultrapure water and chemicals.
Their ability to retain microorganisms while allowing high flow makes PES filters the standard choice in sensitive and regulated applications.
- Filter Media: Hydrophilic Polyethersulfone (PES)
- Support Layers: Polypropylene (PP)
- Micron Ratings: 0.1μm, 0.2μm, 0.45μm, 0.65μm
- Lengths: 10”, 20”, 30”, 40”
- Outer Diameter: 68mm / 69mm / 115mm
- End Cap Options: DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
- Core/Cage: Polypropylene (thermally bonded)
- Operating Temperature: Up to 85°C (185°F)
- Max Differential Pressure: 4.2 bar at 25°C; 2.1 bar at 80°C
- Sterilization Methods: Gamma irradiation, Steam (121°C for 30 mins)
- Extractables: ≤30mg/10” (per USP <661> in WFI)
- Certifications: ISO 9001, ISO 13485, FDA, CE, SGS
