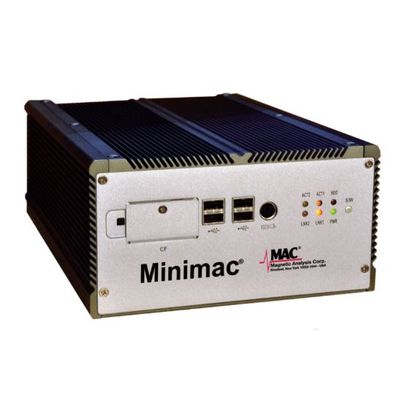

Minimac - Model 50 -Economic, Single Channel Eddy Current Tester

Performance

• MAC’s proprietary Multimac® software.
• High performance, low cost.
• Broad frequency range - 1 KHz to 5 MHz.
• Configure for Flaw or Absolute mode for use with encircling or sector coils.
• Sensitivity, phase & filter easily set on screen while viewing full color polar & linear display of real time, true wave form signals.
• Relay output from active threshold signal.
• Use with MAC test coils & platforms, including DC saturation CP’s for testing magnetic material.
• CE Compliant

Applications

• Inspect wire, tube and parts
• Detect laps, slivers, cracks
• Detect weld line faults, including short ID or OD defects.
• Test magnetic and non magnetic grades.
• Operate at speeds up to 4000 f.p.m. (with standard coils). HIgher speeds achievable with wide-spaced coils.
• Check continuity & locate welds in single & multi-conductor insulated wire and cable.
• Detect Magnetic Inclusions with optional MID version of Minimac.

Simple Operation

• Setup and monitor on site, or via computer network.
• Store, annotate, and recall from internal library or network, an unlimited number of settings.
• Lockout mode to prevent unauthorized setting changes.
• Defect signal report (on screen), including time, amplitude, phase, user and product data.
