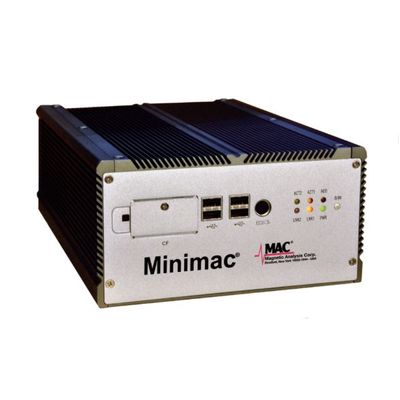

Minimac - Model 55 -Economic, Single Channel, Full Feature Eddy Current Tester
Performance: MAC’s proprietary Multimac® software. High performance, low cost. Broad frequency range - 1 KHz to 5 MHz. Configure for Flaw or Absolute mode for use with encircling or sector coils. Sensitivity, phase & filter easily set on screen while viewing full color polar & linear display of real time, true wave form signals. Solid state relay output from active threshold signal. Use with MAC test coils & platforms, including DC saturation CP’s for testing magnetic material. CE Compliant
Most popular related searches
- Detect short surface & some subsurface defects, including laps, slivers and cracks in tube, bar, wire and parts.
- Test magnetic and non magnetic grades.
- Find weld line faults, including short ID or OD defects.
- Operate at speeds up to 4000 f.p.m.(with standard coils). HIgher speeds achievable with wide-spaced coils.
- Check continuity & locate welds in single & multi-conductor insulated wire and cable.
- Test cut lengths or continuous product, on-line or off-line.
- Detect Magnetic Inclusions with MID version of Minimac.
- Setup and monitor on site, or through computer network.
- Store, annotate, and recall from internal library or network an unlimited number of settings.
- Linear strip charts and complete test data are stored.
- Complete networking capabilities using standard remote desktop operating software.
- Lockout mode to prevent unauthorized changes in settings.
- Defect signal report, including location, time, amplitude, phase, user and product data.
