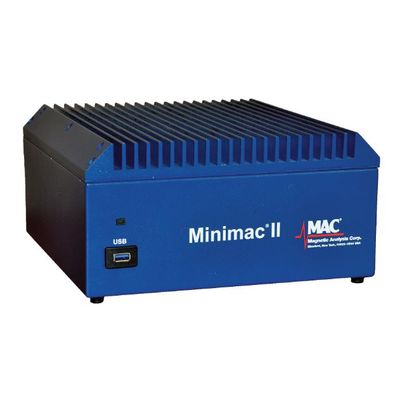

Minimac - Model II -Economic, Single or Two Channel Full Feature Digital Eddy Current Tester

Economic, Single or Two Channel Full Feature Digital Eddy Current Tester for Tube, Bar, Wire.

Most popular related searches

Fully digital operation.
Embedded processor.
High reliability and performance with low cost.
Operate any combination of one or two Flaw or Absolute test channels and MID (Magnetic Inclusion Detector).
MAC’s proprietary MultiMac® software.
Broad frequency range - 1 KHz to 6 MHz.
Use one or two channels for encircling coil test applications.
Optional connector and second channel for rotary probe test applications.
Rugged fanless design.
CE compliant.

Sensitivity, phase & filter are easily set on screen while viewing full color polar & linear display of real time, true waveform signal.
Store, annotate & recall unlimited number of settings from local or networked drive.
Recordable linear strip charts and complete test data.
Complete networking capability with remote command set.
Easy upgrade from one to two channels.
Lockout mode to prevent unauthorized changes in settings.
Defect signal report includes data on location, time, amplitude & phase.
Control of all functions is set through mouse or keyboard entry

Detect short surface and some subsurface defects, including laps, slivers and cracks in tube, bar, wire and parts.
Detect long surface defects with optional rotary spinning probe systems.
Test magnetic and non magnetic grades
Find weld line faults including short ID or OD defects.
Operate at speeds up to 4000 f.p.m. with standard test coils. Operate at higher speedwith wide-spaced coils.
Check continuity & locate welds in single & multi-conductor insulated wire and cables.
Test cut length or continuous product, online or offline.
Detect magnetic inclusions with MID mode of operation. Optional second channel can operate an eddy current/MID combination test.
