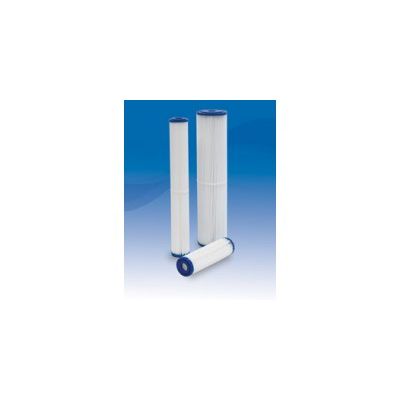

Shelco MicroSentry - Model ME Series -Economical Pleated Filter Cartridges

• High surface area provides greater d irt-holding capacity, lower initial pressure drop and longer change-out intervals
• Constructed of layers of economical polyester and polypropylene blended media, laminated to provide depth filtration
• Best alternative to string wound, resin-bonded or spun cartridges
• No resin binders to break down and contaminate the filtrate
• 100% synthetic fibers with no surfactants that cause foaming
• Available in standard 2 5/8" and 4 1/2" (BB Style) diameter configurations
• Washable and reusable - significantly reduces filtration costs (20 micron and larger)

• RO Prefilters
• Food & Beverage
• Plating Solutions
• Microelectronics
• Electronics
• Oil / Gas
• Chemicals
• Paint/Inks
• Water & Wastewater
• Cosmetics

Pore Sizes

• 0.35, 1A, 1, 5, 10, 20, 50 microns

Nominal Lengths

• 9.75", 10", 19.5", 20", 29.25", 30", 40"

Materials of Construction

• Filter Media: Polyester / Polypropylene blend
• Core: Polypropylene
• End caps: Plastisol

Maximum Temperature

• 140°F (60°C)

Recommended Change-out Differential Pressure

• 20 psid (1.4 bar)

FDA Compliance

• MEE products are manufactured of materials with no additives or other manufacturing agents. All materials used in the production of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations.
