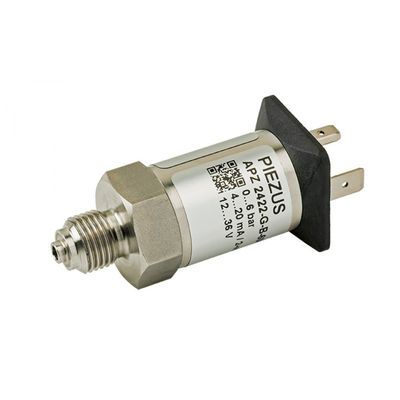

PIEZUS - Model APZ 2422 -Economy line dual/triple-range pressure transmitter
FromPIEZUS LLC
APZ 2422 economy line pressure transmitters feature up to three pressure ranges selectable by the user via ZCON 100 configurator tool, allowing customers to have reduced inventory of spare instruments. Based on a welded stainless steel silicon piezoresistive sensor, APZ 2422 is a great choice for the applications where elastomeric seal is not desirable.Most popular related searches
Ranges: 6 bar up to 600 bar
Number of ranges: up to 3, user-selectable via ZCON 100*
Pressure type: gauge
Accuracy: ±0.5%, ±1% FS of the highest chosen range
Output: 4...20 mA / 2 wire
Sensor: silicon piezoresistive
Pressure port: G1/2ˮ; G1/4ˮ; 1/2ˮ NPT; 1/4ˮ NPT; M20x1.5 etc.
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+85 °C
Hydraulics and pneumatics
Pumps and compressors
Industrial machinery
Transportation
HVAC/R
