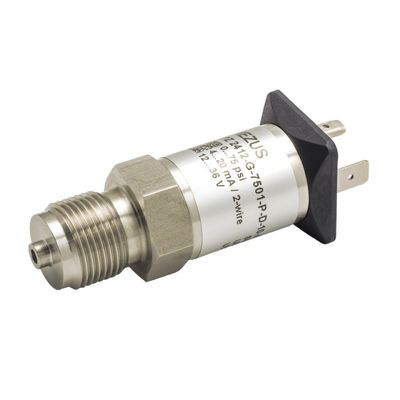

PIEZUS - Model APZ 2412 -Economy line dual/triple-range pressure transmitter
FromPIEZUS LLC
APZ 2412 economy line pressure transmitters feature up to three pressure ranges selectable by the user via ZCON 100 configurator tool, allowing customers to have reduced inventory of spare instruments. Based on a monolythic ceramic measuring cell, highly resistive to abrasive and aggressive(*) media, APZ 2412 is a good fit for the applications where hydraulic shocks (water hammer) are not present. APZ 2412 feature improved accuracy as compared to model APZ 2410, which offers improved overpressure capability.
(*) please consult the manufacturer for particular media compatibilityMost popular related searches
Ranges: 1.6 bar up to 400 bar
Number of ranges: up to 3, user-selectable via ZCON 100*
Pressure type: gauge
Accuracy: ±0.5% FS of the highest chosen range
Output: 4...20 mA / 2 wire
Sensor: ceramic thick film
Pressure port: G1/2ˮ; G1/4ˮ; 1/2ˮ NPT; 1/4ˮ NPT; M20x1.5 etc.
Media temperatures: -25...+135 °C
Ambient temperatures: -40...+85 °C
(*) ZCON 100 configurator is sold separately and provides ZERO TRIM and RANGE SWITCHING features
Pneumatics
Hydraulics*
Transportation
Water level monitoring in tanks
