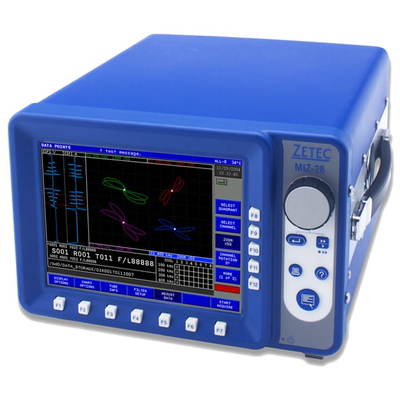

Zetec - Model MIZ-28 -Eddy Current Instrument

SHARE

MIZ-28 delivers more technology and exceptional performance for high-speed and high-efficiency inspection of heat exchanger tubing. It comes equipped with industry leading data management features with more on-board data storage and easy file transfer. It also features two injection technologies in one box. Multiplexed and simultaneous injections are combined into one box that can test most tube materials, including magnetic alloys like carbon steel.

Most popular related searches

eddy current instrument

inspection data

Best Detection

Testing with multiplexed frequencies lets you discover issues from surface cracks to deep flaws with speed and reliability.

High-Speed RFT

Simultaneous injection gets you the highest testing speeds, and supports remote field testing.

Large Internal Drive

A 500 GB internal hard drive provides a massive amount of storage of recorded inspection data.

Rugged Enclosure

Its structural design makes it an ideal unit to take on heavy-duty conditions.

Weight 16.0 lb (7.3 kg)
Dimensions 8.0H x 11.5L x 13.5D in. (20.3 x 29.2 x 34.3 cm)
Power 85 - 264 VAC 47 - 63 HZ 140 watts maximum, with all options
Operating Temperature Range 32°F to 113°F (0°C to 45°C)
Storage Temperature Range -40°F to 185°F (-40°C to 85°C)
Frequency Range 5 Hz to 10 MHz
Display Color 640 x 480 pixel (8.4-in.) active matrix display offers same resolution as computer monitor
Drive 0 - 20 Vpp
Sample Rate - samples/second Multiplexed mode—Operator adjustable up to 15,600 s/s for 1 frequency; 3,900 s/s for 4 frequencies
Sample Rate - samples/second SI mode—Operator adjustable up to 15,600 s/s at 4 frequencies
Memory 500 GB internal hard drive
Memory Flash memory for configurations and firmware updates via USB key
Memory Non-volatile SRAM memory for storage of instrument settings
Data Recording USB Flash Drive, Magneto Optical Disk, Jaz Drive, Zip Drive
Data Recording 500 GB internal hard drive
Input/Outputs Ethernet 10/100BaseT for network interface
Input/Outputs VGA—output display to VGA monitor or video output with external converter box
Input/Outputs RS-232—communication to Model III Probe Pusher Control
Input/Outputs USB for printer, keyboard, mass storage device

2 Technologies in 1

Both multiplexed and simultaneous injections are supported, promoting speed, efficiency and RFT capabilities.

Zetec Software Ready

Data files are compatible with our Velocity/AN Software, EddynetSuite Analysis, and ET Analysis for Windows.

Probe Pusher Support

Provides support for our 3D Probe Pusher with optional conduit gun using a Model III Probe Pusher Control system.

500 GB internal hard drive
