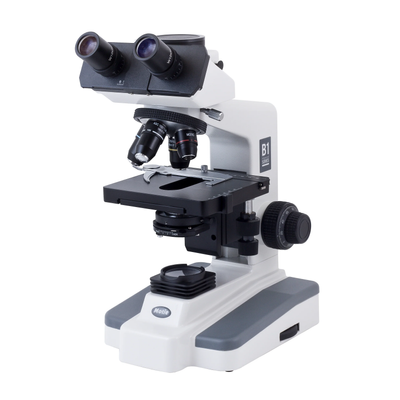

Motic - Model B1-253ASC -Educational Trinocular Microscope
A trinocular microscope that is easy to use, for basic work in biology and medicine. The sections, smears, and other samples are treated by our Semi-Planachromatic SP objectives in a 4-fold revolving nose piece. Doctors and students alike will benefit from the conveniently pre-installed package.
Most popular related searches
- Model: B1-253ASC
- Observation tube: Trinocular, sliding type
- Optical system: Finite Optical System, 160mm
- Inclination: 30° inclined, 360° rotating
- Interpupillary distance: 55-75mm
- Diopter adjustment: On both tubes , +/- 5 diopter
- Eyepieces: Widefield 10X/18mm
- Nose piece: Quadruple revolving nose piece with click stops
- Objective classification: Achromatic Super Contrast
- Objectives: 4X/0.1, 10X/0.25, 40X/0.65/S, 100X/1.25/S
- Stand type: Upright
- Stage: Built-in low position coaxial rackless mechanical stage with sample holder
- Travel range X&Y: 76x40mm
- Condenser: Focusable 1.25 N.A. Abbe Condenser, iris diaphragm and filter holder
- Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision: 2 μm minimum increment
- Upper limit stop: Preset and Adjustable
- Transmitted illumination: 3W LED illumination with intensity control
- Accessories included: Dust cover and immersion oil
