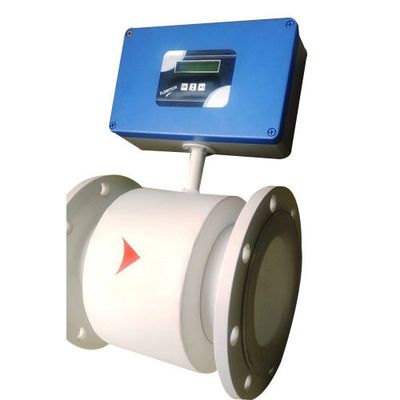

Flowtech - Effluent Water Digital Flow Meter

FromFlowtech Measuring Instruments Private Limited

SHARE

Flowtech Make Effluent Water Digital Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday’s law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity & density of the flowing liquid.

Most popular related searches

digital flow meter

electromagnetic flow meter

water digitization

water flow metering

water flow meter

digital water meter

electromagnetic induction

Minimum Order Quantity: 1 Piece
Application Media: Any Liquid
Power Supply: 230 VAC, 110 VAC & 24 VDC
Brand: Flowtech
Flow Tube Material: SS 316
Output: Std. 4 - 20 mA
Protection Class for Sensor: IP 65

This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.

Nominal Dia (mm): 15 to 600
Material of Construction: MS, SS 304, SS 316 & SS 316L
Electrode Material: SS 316, SS 316L, Hastelloy ‘c’, & Tantalum
Process Pressure: Max. 25 kg/cm2
Process Temperature: Max. 150C
Measuring Range: 0.5 m/sec for Minimum & 5m/sec for Maximum
Accuracy: ± 1%
FSD Optional: ±0.5% FSD.
Repeatability: 0.3%
Display: 2 Line Alfa Numeric LCD
Display Version: Integral /Remote
Display Unit: Standard Unit in M3, Litre
Protection Class for Transmitter: IP 65Cable Length for Remote : 10 meters.Installation : Inline Flange Type.

Item Code: EMFM-01
Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
Port of Dispatch: VADODARA
Production Capacity: 100 Pieces per month
Delivery Time: 1 week
Packaging Details: Wooden cages
