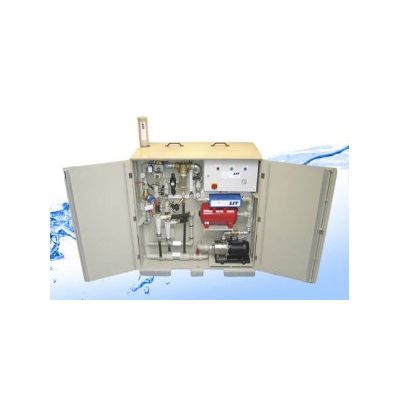

EKOLIT - Model X Series -Recycling System
The new EKO-LIT series, which we launched in 2002, is the most economical and efficient recycling system we have ever developed. It brought several significant advantages which we would like to briefly point out : With the EKOLIT system we remove suspended solids by a two stage process. a) By hydro-cyclone to remove larger particles. b) By fine filter, which are equipped with an automatic back-flush system (20 or 50 micron). The back flush is activated after every car wash cycle is completed. Moreover, the filter mesh is made of stainless steel and does not need periodic changing. By high voltage electrode (30,000 Volts / 300 mAmps.). By our well established water stabilizer. Freylit has been engaged for many years in researching new wash water recycling technology. Recently we discovered that, when wash chemicals are mixed together with dirt and exposed to sunlight algae will grow.
These algae will stick to pipes, tanks, car wash and other surfaces and act as a culture for bacteria. These bacteria will cause bad odour. To combat this problem Freylit developed the high voltage electrode which does not only kill bacteria, but is also very effective in preventing the growth of algae. Moreover, the High Voltage Electrode will cause a flocculation of fine particles.
FOUR-Stage Solids Removal by
- The stainless steel pump protector coarse screen to block out solid waste (>3mm) such as tissue paper, cigarette butts, etc. and preventing it from entering the system
- The Hydro-Cyclone removes heavy dirt particles (silt & sand)
- DAF Dissolved Air Floatation will floatate light suspended solids to the surface of the reactor tank from where they are drained away
- Micro Filters with 20 or 50 micron mesh size remove even the finest solids from the wash water
TWO-Stage De-germing process:
- A High Voltage Electrode (HVE) kills bacteria by electricity
- The well proven FREYLIT Water Stabilizer activates the recycled water for re-use
Removal of Algae:
When wash chemicals are mixed together with dirt and exposed to sunlight algae will grow. These algae will stick to pipes, tanks, car wash and other surfaces and act as a culture for bacteria. These bacteria will cause bad odour. To combat this problem Freylit developed the high voltage electrode, which does not only kill bacteria, but is also very effective in preventing the growth of algae.
FULLY AUTOMATED OPERATION:
- PLC controlled. No intervention of workers needed.
- Micro filters are equipped with fully automated back flush system
LOW OPERATING COST:
- No need for constantly refilling chemicals or bacteria cultures, or generating Ozone, or any other inputs for de-germing the water
- No need for Ozone which damages cables, hoses and seals of the car wash
- No need for changing any filter cartages or other consumables
EASY INSTALLATION and LOW COST MAINTENANCE:
Maintenance (about only two times per year) is limited to
- cleaning the pump protector by built in compressed air back-flush
- cleaning Hydro-Cyclone nozzle and filter insert mesh
- cleaning HVE and reactor tank
HIGHEST MANUFACTURING QUALITY and LONG LIFE:
- Over 25 years of FREYLIT experience with wash water recycling have gone into the development of the EKOLIT system. Strictest quality controls ensure that every FREYLIT system will benefit from this experience.
- Austrian design, made in the EU guarantees state of the art technology
- Pneumatic fully automated controls ensure safe operation
- Only high quality components from first class international suppliers are used in the manufacturing of EKOLIT
