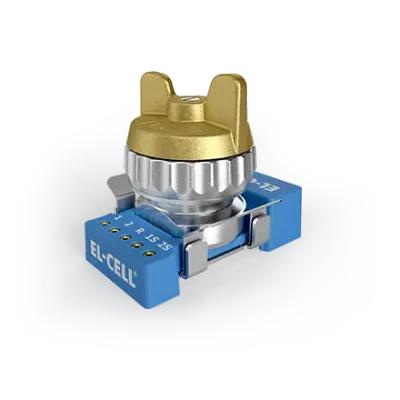

EL-CELL - Model PAT-Clamp-1 -Docking Station With Minimized Dimensions
FromEL-Cell GmbH
The PAT-Clamp-1 is our smallest docking station for a single PAT test cell. It was developed for tight space constraints. The socket can be left connected permanently to a common potentiostat or battery tester using 2 mm banana sockets or Sub-D connector. Therefore there is no need to renew the connection between cell and potentiostat for every battery test. It also fits perfectly into any climate chamber with a cable feed-through and can be placed inside a glovebox. The cell is inserted and removed by bending up the clamp. The PAT-Clamp-1 allows immediate functional testing of all PAT series test cells with smallest possible footprint. Typically, it is used in combination with a high-throughput solution. For instance, 16 PAT-Cells can be cycled in parallel in a PAT-Chamber-16 connected by a third-party battery tester without impedance capability. In that case, the impedance of each test cell can be measured before and after the cycle test in the PAT-Clamp-1 connected to the PAT-Tester-x or another impedance analyzer.Most popular related searches
- Socket for one PAT series test cell (charge / discharge / EIS compatible)
- Compatible with any other potentiostat and battery tester
- Can be used inside a glove box environment
- Fits into tight spaces
- Flexible wiring via 2 mm banana sockets
- Saves wiring effort and space in the lab
PAT-Clamp-1 H
Height: 27/83 mm (without/with PAT-Cell-Press)
Width: 86 mm
Depth: 62 mm
Weight: 0.12 kg (without cell)
Operating temperature: -20 to +70°C
