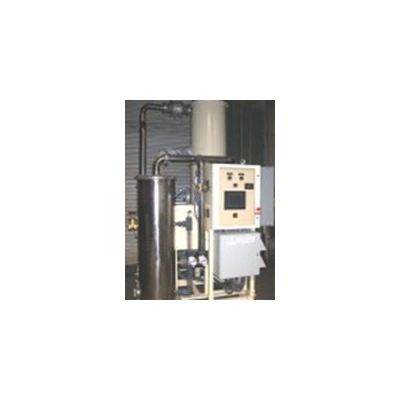

Soil-Therm - Model Mini-ELECTRIC -Electric Catalytic Oxidizer Systems

FromSoil-Therm Equipment Inc.

SHARE

SOIL-THERM offers the above features on a smaller footprint with our Mini-ELECTRIC systems. A mere 5 ft by 5 ft., it comes with a Roots 56 positive displacement blower with 10 hp motor which is enclosed for sound attenuation, 24-30 kW heater, 60% efficiency heat exchanger, and can destroy extracted VOC’s from 0 to 25% LEL.

Most popular related searches

brass gate valve

catalytic oxidizer system

stainless steel catalyst

electric catalytic oxidizer

stack emissions monitoring

variable frequency drive

positive displacement blower

deck over trailer

Skid Size: 6 ft by 6 ft Steel Skid with lifting lugs and fork slots
Blower: Roots 59 with 15-20 hp TEFC motor
Heater: 40 kW, 230VAC, 3-phase
Piping: 4" Stainless steel
Catalyst Module: Greater than 98% destruction
Heat Exchanger: All stainless shell & tube, 55-60% efficiency
Water Knockout: 60 gallon capacity, stainless steel, dual level switch
Knockout pump: Goulds NPE, stainless steel, .5 hp motor
Well Vapor Valve: 4" Brass Gate Valve
Dilution Air Valve: 4" Brass Gate Valve
Main Control Panel: 30"x 24"x 12", UL Listed, Nema 4
Operator Interface: 8" Color Touchscreen with 4GB Data Card

Variable Frequency Drive for Main Blower and/or Dilution Blower
Main Blower Upgrade - - Dual Phase or Rotary Claw
Dilution Air Blower Upgrade to 150 cfm, 2 hp
ReMAC - (Remote Monitoring and Control)
- Cellular Modem Unit with Antenna
- Cellular Service (monthly fee)
Monitoring Instrumentation Upgrades:
- LEL (pre-burner or exhaust stack)
- Oxygen (%)
- Amperage (A)
- Discharge Temperatures ( F)
- Stack Emissions Monitor (O2, VOC, CO2, etc )
- Many others...
Trailer, dual axle, 7,000 lb gvwr, 6`x12` open deck
Trailer, enclosed, 10,000 lb gvwr, 8`x14` enclosed deck
Enclosure, Cargo Container style
Enclosure, Noise Attenuated Cargo Container style
