Soil-Therm Equipment Inc. products

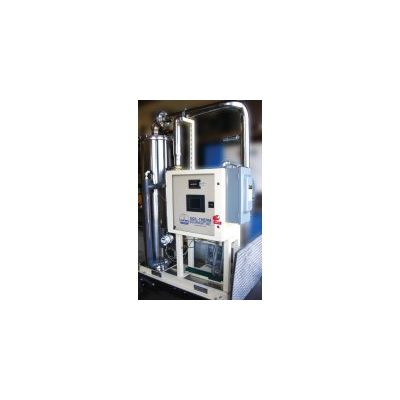

The Micro-THERM is the smallest, most powerful remediation oxidizer system on the market. The footprint is a mere 4 ft by 3.5 ft, which includes everything from the water knockout, knockout pump, control panel, SVE blower, and our patented Jet-THERM ultra low NOx burner. The Micro-THERM is quiet, energy efficient, and has a flow range of 50 - 300 scfm at vacuums to 14` Hg. Add catalyst and a heat exchanger and the Micro-THERM can operate using less supplemental fuel than the gas grill in your back yard!

The Compact-THERM Remediation Blower System is designed for environmental remediation applications, providing an efficient solution for the extraction and processing of contaminated air or vapors. Built on a 6 ft by 6 ft steel skid equipped with lifting lugs and fork slots, the system is engineered for portability and robust field operation. Featuring a Roots 59 blower powered by a 15-20 hp Totally Enclosed Fan-Cooled (TEFC) motor, it ensures reliable air movement. The Jet-THERM(TM) burner and 4-inch stainless steel piping are optimized for safe and effective thermal processing. The system includes a 60-gallon dual-level switch stainless steel water knockout and a Goulds NPE knockout pump with a 0.5 hp motor for efficient liquid separation. It is managed via a UL Listed Nema 4 Main Control Panel with a comprehensive 8-inch color touchscreen operator interface, ensuring user-friendly control and data management.

The Compact-ELECTRIC is built to process higher flow rates of VOC`s from a range of 0 to 25% LEL. The standard system includes 40 kW heater, 60% efficiency shell and tube heat exchanger, 6 ft x 6 ft skid, positive displacement or DPE blower with TEFC motor, Nema 4 UL508A Approved control panel, touchscreen operator panel, advanced PLC controls and more.

SOIL-THERM offers the above features on a smaller footprint with our Mini-ELECTRIC systems. A mere 5 ft by 5 ft., it comes with a Roots 56 positive displacement blower with 10 hp motor which is enclosed for sound attenuation, 24-30 kW heater, 60% efficiency heat exchanger, and can destroy extracted VOC’s from 0 to 25% LEL.

SOIL-THERM custom thermal systems are the gold standard in the remediation industry. Our systems are compact and powerful. Expansive PLC based controls with a touchscreen operator panel gives you a system that is easy to operate, versatile, and modular to meet your changing needs.

SOIL-THERM enclosed systems have a whole new look and are quieter than ever! Starting with a typical looking cargo container, SOIL-THERM completely rebuilds the inside and doors with 6- inches of custom sound insulation that reduces noise levels to less than 60 dBA at 3-ft. Intake and exhaust fans are installed on the roof of the enclosure, providing 1000 cfm of cooling/exchange air during operation. Very quiet and discrete.

You won’t ?nd this kind of quality anywhere else! Soil-Therm Enclosed Systems are the ?nest quality, hardest working, most energy ef?cient thermal remediation systems on the market!

With SOIL-THERM’S new SVE Micro-BLOWER remediation systems, soil vapor extraction and dual phase extraction is easier than ever! You get a powerful system that is capable of cleaning sites quickly and quietly, in the smallest places. Easily forklift these systems off your pickup truck for pilot testing or mount them anywhere for continuous operation!
