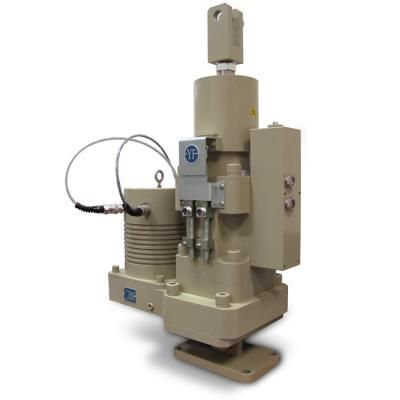

Young-Franklin - Model 8650E250 Series -Electric Guide Vane Actuators

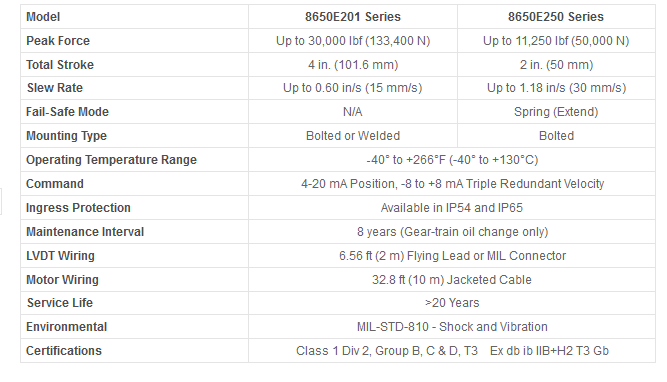

The Young & Franklin 8650E250 Series EIGV Actuators are built to withstand the rigors of frame turbine operating environments. These electric actuators are an upgrade from hydraulic air inlet controls, providing more reliability and better overall turbine performance.  The E250EIGV Actuators are available with peak force of 11,200 lbf. and 1.97 in stroke length. The 8650 Series features a sealed gear-train lubrication system, is self-contained and requires minimal maintenance. The entire assembly has been tested to over 20 years at temperature and load.
