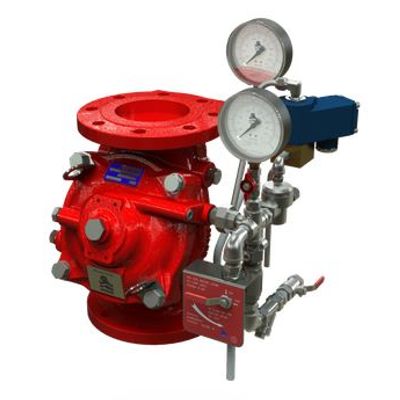

Bermad - Model FP-400Y-3D -Electrically Controlled On-Off Deluge Valve
The BERMAD model 400Y-3D is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards. The 400Y-3D is activated by a 3-way solenoid valve, suitable for electric fire detection systems. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems. The 400Y-3D is ideal for systems with open nozzles for water or foam discharge. Available with electric components to suit any hazardous location.
Safety and reliability
- Time proven, Simple, fail-safe actuation
- Single piece, rugged elastomeric diaphragm seal – VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Shuts off on remote command
High performance
- Very high flow efficiency
- Approved for PN25 / 365 psi
- Straight through flow Y-type body
Specifically-designed for fire protection
- Face-to-face length standardized to ISO 5752, EN 558-1
- Meets the requirements of industry standards
- Quick and easy maintenance
- In-line serviceable
- Fast and easy cover removal
- Swivel mounted drain valves*
- * not including 1½” & 2” valves
- Electric fire detection systems with control panels
- Remote control water spray systems
- Foam applications
- Corrosive water supplies
A typical installation of the BERMAD model 400Y-3D features actuation via a hydraulic relay valve and three-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.
When open and fitted with a limit switch the valve can send a feedback signal to a remote valve status monitoring system.
