Electrochemistry Accessories
In electrochemical research, the flexibility to set up and perform experiments as you need is crucial. Metrohm Autolab offers a range of electrochemistry accessories to expand the scope of your electrochemical research. These products will enable you to implement different measurement techniques, expand the measurable range, and conduct specific applications.
-
Optical Benchfor photovoltaic applications
-
Faraday cagefor interference protection
-
Rotating disk (RDE) and rotating ring disk (RRDE) electrodes
-
Autolab rhd Microcell HCfor temperature control
-
VA standfor voltammetry and polarography
-
Electronic Load Interfacesfor high-voltage and high-power applications
-
Cellsfor corrosion applications
The Autolab rotating disk (RDE) and rotating ring disk (RRDE) electrodes are high-precision and low-friction rotators which can be used to create and control convective mass transport in an electrochemical cell. The rotation rate can be controlled either manually or directly through the software.
The mercury contacts used in these rotators ensure that the electrical contact to the electrodes remains noise-free at any rotation rate.

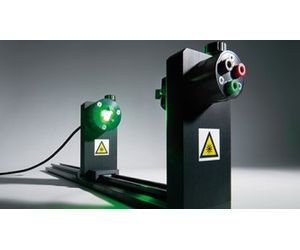

The Autolab Optical Bench is a system that enables you to study photovoltaic cells, such as dye-sensitized solar cells.
This system includes a highly focused LED light source and a software-programmable LED driver for light source output control. In addition, you will receive a full set of accessories including various LED covers for different wavelengths.

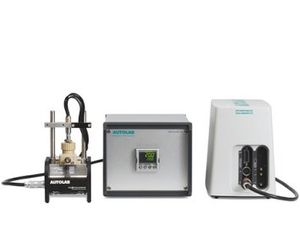

The Autolab rhd Microcell HC is the ideal solution for fast and reliable temperature-controlled experiments. Consisting of a temperature controller and a cell stage with Peltier element, the Autolab rhd Microcell HC is designed to accommodate a large choice of specially designed electrochemical cells. The temperature can be controlled either manually or through the NOVA 2 software.
The electrochemical cells designed for the Autolab rhd Microcell HC system suit all experimental requirements. This combination allows you to perform electrochemical measurements using all the available electrochemical techniques in order to determine relevant parameters like impedance and conductivity over a wide range of temperatures.

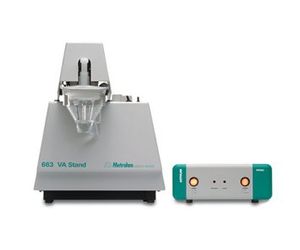

Used together with a Metrohm Autolab potentiostat, this measuring stand enables polarographic and voltammetric measurements.
The Multi-mode electrode pro that is fitted to the system can be operated in various modes: Dropping Mercury Electrode (DME), Hanging Mercury Drop Electrode (HMDE), and Static Mercury Drop Electrode (SMDE).

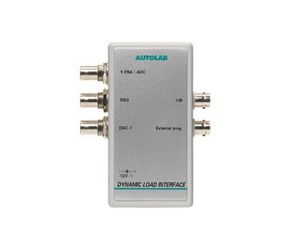

Electronic Load Interface: This generic interface can be used to control electronic loads or power supplies in experiments involving measurements at very high power (Keysight and TDI).
The Metrohm Autolab Electronic Load Interface is compatible with the products of the following companies:
Voltage Multiplier: When used with the differential amplifier of the Metrohm Autolab potentiostat/galvanostat, this extension allows you to expand the measurable voltage range to up to 100 V.
The Voltage Multiplier extension can be used for electrochemical measurements on battery and fuel cell stacks.

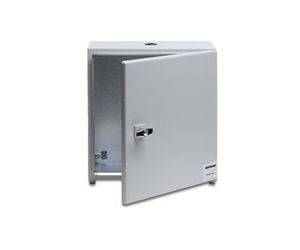

Protect your electrochemical setup against electromagnetic interference from external sources (e.g., computer monitors, other instruments, or power lines) with the Metrohm Autolab Faraday cage.
