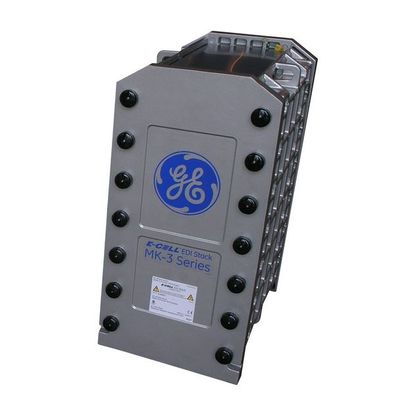

SepraModel MK-3E -Electrodemineralization Cell Module (EDI)

SHARE

The MK-3E module is an EDI cell capable of producing demineralised water with a very high level of purity. The ions are removed by means of an ion exchange resin, which in turn is regenerated continuously by means of electric current. Interruptions of the process and regenerating chemicals are thus not necessary to restore functionality.

Most popular related searches
  • Design pressure of the E-CellTM module 6.9 Bar
  • Working pressure 4.8-6.9 Bar
  • Pressure drop 1.4-2.4 Bar
  • Operating temperature 4.4-38.0 ºC
  • Membrane Asahi Glass Corporation (AGC)
  • Ion-exchange resin Mitsubishi Chemical
  • Anode material IrOx/TiO2 su Ti
  • Cathode material stainless steel
  • Dimensions 300 x 480 x h 610 mm
  • Weight 92 kg
  • Connections TC (1" feed - 3/4" concentrate)
  • Minimun flow 1.7 m3/h
  • Maximum flow 4.5 m3/h
  • Nominal flow 3.4 m3/h
  • Recovery 90-95%
  • Supply voltage 300 V o 400 V DC (max)
  • Current 0 - 5.2 A
  • Quality of produced water resistivity >16 MΩ-cm
  • Silica < 5 ppb
  • Sodium < 3 ppb
  • Boron removal > 95%
