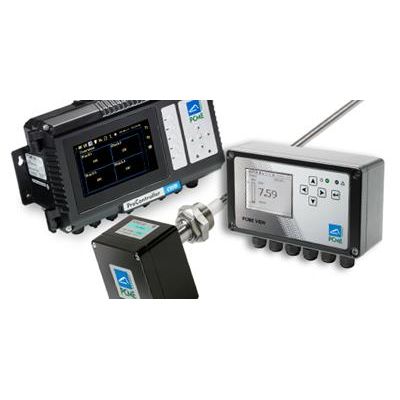

ENVEA - Model PCME VIEW 370 -ElectroDynamic Dust Monitor
FromENVEA
Multi-sensor dust monitor designed for high quality emission measurement in industrial stacks after bag filters, cartridge filters, cyclones and process driers. Advanced Probe Electrification Multi-sensor dust monitor designed for high quality emission measurement in industrial stacks where regulatory approvals are not necessary.
Most popular related searches
dust monitoring
bag filter cartridge
wet electrostatic precipitator
multi-sensor monitoring
filter cartridge
cartridge filter
dust monitoring sensor
process dust monitoring
measurement in stack
wet electrostatic precipitation
- Full colour, icon-driven menu and display
- Two independent alarm set points
- Relative dust reading on clear scale 0-100%
- Dust “Overrange” icon
- Security setting
- Digital Signal Processing
- Field upgradeable
- Stacks after bag filters, cartridge filters, cyclones
- Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
Typical Applications
- Incineraton
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- Chemicals (eg Detergent / Ti02)
- Food (eg Milk Powder / Tobbacco)
- Power (eg Boilers/Biomass)
- Measured parameters: Dust
- Technology: ElectroDynamic® Advanced Probe Electrification
- Measurement/Monitoring capability: 0-500 mg/m³*
- Stack/Duct diameter suitability: up to 6m
- Flue gas temperature: up to 800°C
- Baghouse: YES
- Cartridge Filter: YES
- Ceramic Filter: YES
- Coalescent Filter: YES
- Cyclone: YES
- Electrostatic Precipitator (ESP): /
- Wet Electrostatic Precipitator (WESP): /
- Wet Scrubber: /
- Sensor variants: Stainless Steel
- QA checks: N/A
*Application dependant
- Monitoring capability: 0-500 mg/m3
- Sensor Variants: Stainless Steel (standard)
- Stack Temperature Ranges: 0-125°C standard, up to 800°C option
- Outputs: 2 x Digital Alarms (1 x 4/20mA Option)
- Ex Zone 22
- US EPA MACT Compliant BLD
