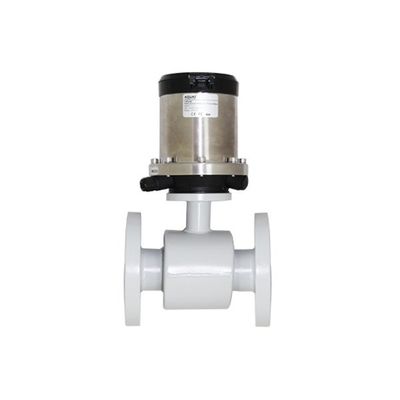

Aquas - Model MAG Series -Electromagnetic Flow Meter
FromAquas Inc.
The MAG series is a highly reliable and cost-effective electromagnetic flow meter with innovative technology for flow measurement, data collection and communication applications. It is built-in with flow modules, battery, with robust IP68 water submersible enclosure, the product is designed for frequently flooded underground chambers and extreme temperature and humidity, outdoor locations etc. Ultra low power consumption allows battery or solar power tp ensure for 5 years of continuous operation.
Most popular related searches
electromagnetic flow meter
flow meter
flow velocity
flow monitoring
flow modulator
flow meter technology
water enclosure
pipe thickness monitoring
pipe liner
electromagnetic flow monitoring
- Innovative Forward, Reverse Flow and Empty Pipe Electromagnetic Measurement Technology
- Ultra Low Power Consumption, up to 5 Years of Operation on Internal Battery
- Robust IP68 Enclosure, Solution without Cabinet
- -10~80°C Operating Temperature
- Type : Electromagnetic
- Measurement range : flow velocity: 0.3~15 m/s; flow rate: 0~100 cmh; flow volume: 0~1,000,000,000 m3
- Accuracy : 0.5% of reading (flow velocity>0.3 m/s, conductivity>5μs/cm)
- Resolution : flow velocity: 0.1 mm/s; flow rate: 0.01 cmh; flow volume: 0.01 m3
- Pulse Output : 1~5000 Hz
- Power : non-rechargeable battery, external power (DC 24V)
- Interface : RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
- Nominal Pressure : 1.6 MPa
- Operating Temperature : -10 to 80 °C
- Protection : IP68
- Resolution : 1 mm
- Material : electrode: SS316, pipe: SS304, liner: PTFE, flange: carbon steel
- Dimensions : Φ 102x160 (H) mm
