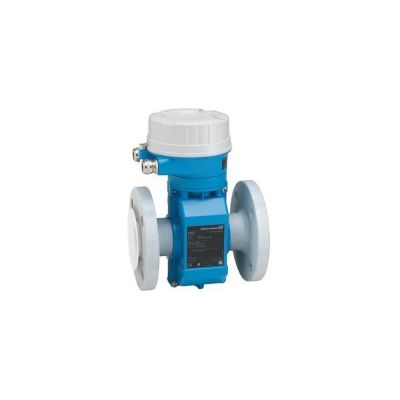

Proline Promag - Model E 100 -Electromagnetic Flowmeter
The economical flowmeter with an ultra-compact transmitter. The proven sensor for economical measurement of conductive liquids, Promag E, serves various basic applications in the chemical and process industry. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promag E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology ensures compliance and process safety at all times.
- Cost-effective sensor – ideal solution for basic requirements
- Energy-saving flow measurement – no pressure loss due to cross-section constriction
- Space-saving transmitter – full functionality on the smallest footprint
- Time-saving local operation without additional software and hardware – integrated web server
- Integrated verification – Heartbeat Technology™
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Fully suitable for basic applications in the chemical and process industry.
Device properties
-
Nominal diameter: max. DN 600 (24")
-
Ex approvals for Zone 2
-
Liner made of PTFE
-
Robust, ultra-compact transmitter housing
-
Local display available
- Liquid Measuring Principle : Electromagnetic
- Product headline : The economical flowmeter with an ultra‐compact transmitter. Fully suitable for basic applications in the chemical and process industry.
- Sensor features : Cost‐effective sensor – ideal solution for basic requirements. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). Ex approvals for Zone 2.
- Transmitter features : Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology™. Robust, ultra‐compact transmitter housing.
- Nominal diameter range : DN 15 to 600 (½ to 24")
- Wetted materials : Liner: PTFE
- Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
- Measured variables : Volume flow, conductivity, mass flow
- Max. measured error :
- Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
- Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
- Measuring range : 4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
- Max. process pressure : PN 40, Class 150, 20K
- Medium temperature range : –10 to +110 °C (+14 to +230 °F)
- Ambient temperature range : –10 to +60 °C (+14 to +140 °F)
- Sensor housing material:
- DN 15 to 300 (½ to 12"): AlSi10Mg, coated
- DN 350 to 600 (14 to 24"): Carbon steel with protective varnish
- Transmitter housing material : AlSi10Mg, coated
- Degree of protection : IP67, type 4X enclosure
- Display/Operation:
- 4‐line backlit display available (no local operation)
- Configuration via web browser and operating tools possible
- Outputs:
- 4‐20 mA HART (active)
- Pulse/frequency/switch output (passive)
- Inputs: None
- Digital communication : HART, PROFIBUS DP, Modbus RS485, EtherNet/IP
- Power supply : DC 20 to 30 V
- Hazardous area approvals: ATEX, IECEx, cCSAus, INMETRO, EAC
- Product safety: CE, C-Tick
- Metrological approvals and certificates:
- Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
- Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 - Section 7.6 a (TÜV attestation)
- Pressure approvals and certificates: PED
- Material certificates: 3.1 material
