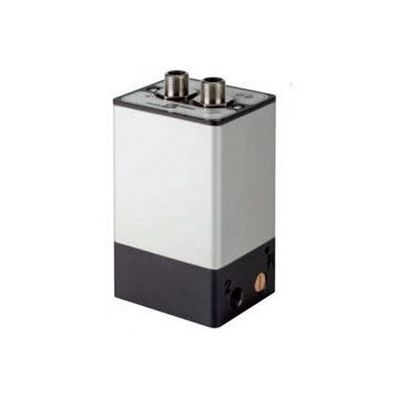

PCS - Model DRP70 -Electronic Pressure Controller

Plug & Play Functionality

This PCS-DRP70 digital electronic valve controller can be supplied with an optional USB cable and software for computer connection. With the software, you can plot the actual sensor and valve values and tweak the PID settings.

Fail-Safe Settings

This type of dual valve controller provides 3 options for fail-safe settings:

1. “Pressure maintain” – both valves close on failure and the pressure is maintained
2. “Pressure release” – the outlet valve will open on failure and the pressure is released; reference pressure will be released quickly and the Equilibar® valve will open to release the pressure
3. “Full pressure” – the inlet valve opens on failure; reference pressure will build up quickly and the  Equilibar® valve closes

This electronic pressure controller is a high-quality product with many beneficial features:

• Available from 100 mbar abs up to 70 bar gauge
• Range adjustable – for example, a 0…70 bar g controller can be re-ranged to 0…35 bar gauge
• No bleed – minimal risk of contamination
• Larger orifices than some other electronic pressure controllers and thus less risk of clogging
• USB interface for monitoring and configuration
• Software selectable analog signals – 0…10 Vdc | 4…10 mA | 0…20 mA
• Remote sensor for closed-loop optionally available
• European BSPP thread for use with a standard adapter with bounded o-ring
• M12x1 electrical connection (standard 5-meter cables available from our stock)
• IP65 protection class
• Fast delivery from a reliable and responsive European manufacturer
• All versions are CE compliant
• Affordable and cost-effective in most situations!
