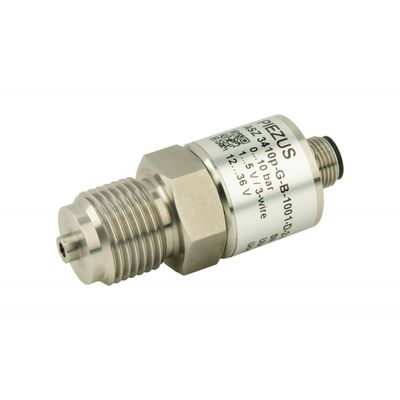

PIEZUS - Model ASZ 3410 p -Electronic pressure switch with PNP outputs for aggressive/viscous/abrasive media
FromPIEZUS LLC
ASZ 3410 p is an electronic pressure switch with PNP (high side) outputs. Ceramic thick film sensor makes it a great choice for the aggressive(*) media. Flush ceramic diaphragm and the open port options are available for the viscous and/or abrasive media. Microcontroller based electronic board provide a highly flexible and configurable solution for local equipment control. User is able to choose from a wide variety of relay triggering algorithms and adjust setpoints and hysteresis values (**). Additionally, an industry standard 4-20 mA analog output is provided, thus ASZ 3410 p is a pressure switch and a transmitter at the same time, making this model stand out in comparision to conventional mechanical switches.
(*) please consult the manufacturer for particular media compatibility
(**) set points and other parameters can be set either by factory or by user via PCON 200 adapter (sold separately)Most popular related searches
electronic pressure switch
pressure switch
mechanical switch
plastic media
ceramic media
pressure transmitter
Pressure ranges: 0.6 mbar up to 600 bar
Setpoints, hysteresis: adjustable (*)
Accuracy: ±0.5%
Switch outputs: PNP (high side), 2 pcs
Analog output: 1...5V (3-wire);
Sensor: ceramic thick film
Pressure port: G 3/4” (for flush diaphragm); G1/2”; G1/4”; 1/4” NPT; M20x1.5; etc
Pressure port materials: stainless steel (for abrasive media), plastic (for aggressive media);
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+70 °C
(*) set points can be set either by factory or by user via PCON 200 adapter (sold separately)
Aggressive media(*)
Abrasive media
Viscous media
Sewage, waste water, sludge
Tank liquid level maintaining
(*) please consult the manufacturer for particular media compatibility
