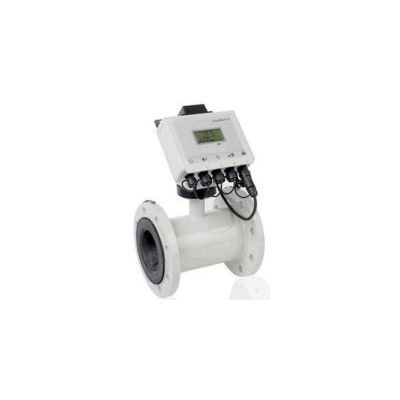

AquaMaster - Electronic Water Meter

AquaMaster electronic water meters have long set the standard for the highest levels of measurement accuracy in even the remotest of locations. AquaMaster is aimed at providing users with a truly flexible flowmeter offering the highest levels of intelligence and accuracy for water utility applications. AquaMaster conforms to the latest international standards to meet increasing legislative demands for accurate flow metering. Its wide measuring range ensures peak daytime flows are accurately recorded and its exceptional low flow performance aids network leak detection. Fit and flow for foolproof installation, all data is stored in the sensor to reduce on-site setup. AquaMaster`s unique sensor design conditions the flow profile resulting in excellent meter performance in poor hydraulic installation conditions.

• NSF61 [G] (3" and larger), OIML R49 and MID approved
• Renewable (Solar / Wind) energy option
• Option of a 5 year replaceable battery life
• AC power with backup version available
• Fit and flow
• Size range 40 mm to 300 mm (1.5 to 12 in.)
• Other sizes by special order
• Flow profile conditioning sensor
• Optional logger provides rich data sets for network analysis
• Capability for combined / simultaneous pulse and Elster protocol encoded output

The AquaMaster 3 makes further improvements over the AquaMaster 1 design. Outputs and Sensor connections are made by Milspec connectors. Sensors and displays are backward compatible allowing users to upgrade with minimal expense.

While not currently listed for Fire Service Meter use, utilities are urged to look at other Elster offerings for such applications.
