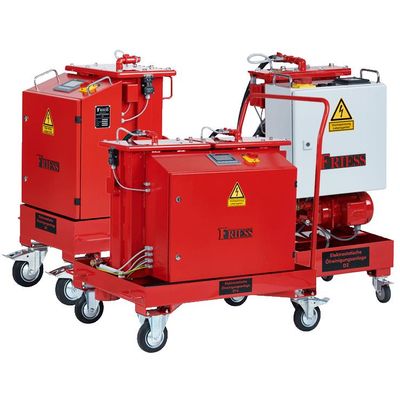

Friess - Model D -Electrostatic Oil Cleaner
Use this FRIESS model on equipment where oil contains less than 500 ppm water. It is only possible to build up an electrostatic field when there is virtually no current flowing. Therefore, the conductivity of the liquid to be cleaned must be kept as low as possible.
However, water in the oil counteracts this. For this reason, in an Electrostatic Oil Cleaning System such as the FRIESS Model D, the oil must be suitable for the process right from the start. Among other things, this means that it must contain less than 500 ppm water. This is the only way in which the electrical resistance can be kept as high as possible.
By means of different control systems, the Electrostatic Oil Cleaning system from FRIESS can be flexibly adapted to the application. Thus, it does not matter whether you want to filter one large oil tank or several small ones.
Models D4-1E / D8-1E / D16-1E
- Capacity: 4 / 8 / 16 L/min
- Dirt holding capacity per set of cleaning elements: 1 / 2 / 4 kg
- Water holding capacity of dewatering element: max. 4L
- Oil temperature: max. 60°C
- Oil viscosity at operating temp.: max. 100 mm²/sec
- Power consumption: max 500W
- High voltage: 14 kV
- Power connection: 230 V / 1 Phase
- Water content in oil: max. 500 ppm
- Dimensions:
- 450 mm x 400 mm x 940 mm
- 850 mm x 650 mm x 1080 mm
- 850 mm x 650 mm x 1080 mm
- 1065 mm x 780 mm x 1090 mm
- Approved oil types:
- Hydraulic oils (H/HL/HLP)
- Lubricating oils (C/CL/CLP)
- Synthetic oils based on PAO
- Oil with D-additives need to be evaluated on a case-by-case basis
- Significantly reduce hydraulic failures and increase hydraulic oil life to over 100,000 hours of operation.
- Save on maintenance, repairs and oil changes with an Electrostatic Oil Cleaner from FRIESS.
- Reduce your oil consumption by up to 90%!
- FRIESS brings your machines to a new performance level!
- Increase the safety of your processes.
