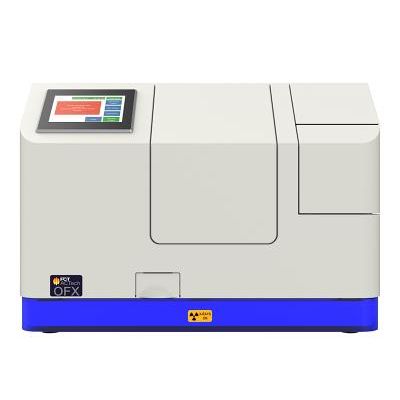

FCT ACTech - Model OFX -Elemental Analyzer with Dedicated Free Lime Channel

SHARE

Be in charge of your process with the power of combined XRF and XRD analysis. The OFX is an ultra-fast elemental analyzer with dedicated FCaO channel for kiln or cement blends control. Incorporating a clinker grinder and powder chute, sample preparation robotics, Nova SxD and SDD detectors, HRTC-XRF module with MD-optics, the OFX delivers unparalleled levels of accuracy, repeatability and precision.

Most popular related searches

sample preparation robot

elemental analyzer

XRF elemental analysis

sample preparation

elemental analysis

X-ray diffraction

Industry Applications:

Combined XRD-based Free Lime and HRTC-XRF elemental analysis for clinker or cement blends control.

Product Details:

Powered by ClassX software
Dimensions: 760 x 470 x 525mm (30 x 19 x 21 inches)
Weight: 80kg (175lb)
Electrical specifications: 120/220 VAC 50 or 60Hz, 750W, 1 Phase
Optional ruggedization module for outdoor configuration

Benefits:

Eliminates wet chemical methods, fused beads or pressed powder pellet preparation
Features inbuilt sample preparation robotics and XRD based free lime control
Proprietary NOVA SxD detector for highly accurate and repeatable FCaO results
Incorporates state-of-the-art HRTC-XRF module, with MD-optics and SDD detector
Measurement of major elements (Ca, Fe, Si, Al, S, Mg) delivered in minutes
Large sample intake of 200g/min (1/2 pound per minute) of crushed or ground clinker for highly representative results
Continuous data trending minimizes chemical variability
Compact size fits easily within existing plant layouts
Designed for indoor benchtop use or outdoor online continuous operation
Ideal for any plant seeking improved kiln stability, increased refractory life and especially those using alternative fuels
