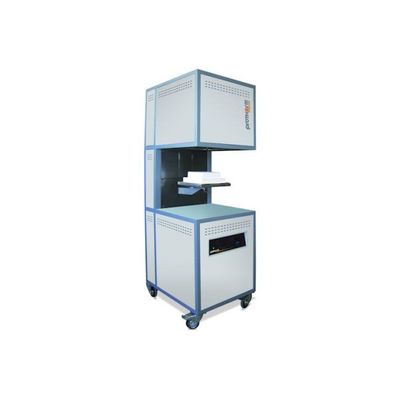

Protherm - Model ELV Series -Elevator Furnaces
The ELV Series Elevator Furnaces by Alser Teknik Seramik A.Ş. represent high-performance, elevated heating solutions tailored for rigorous industrial applications. These furnaces are engineered to achieve high-temperature environments essential for processes such as material sintering, ceramic firing, and metal annealing. With precise temperature control systems, these furnaces ensure consistent and uniform heating, crucial for achieving optimal treatment outcomes. The advanced elevator mechanism is designed for easy loading and unloading, enhancing operational efficiency. Built with robust materials, the ELV Series furnaces promise durability and longevity, even under continuous high-stress conditions. Optional features include advanced atmospheric controls, customizable chamber sizes, and enhanced safety systems, making them adaptable to a variety of high-demand production environments.
ELV series are designed for bottom loading operations and for quick charging and discharging procedures in laboratories.
Available with brick and fiber insulation elements, with a wide variety of options, ELV series is used for glaze fritting, glass melting and applications requiring quick removal of products from the furnace.
Standard ELV series furnaces cover a range from 1100°C to 1800°C, all of which have dual skin housing for low external temperatures and high inner temperature stability uniformity.
Multi-layers of products could be fitted into the furnace, enabling the experimentation of several samples at a time.
Gas feed-in with this series is a standard and various applications of gas controlled atmospheres is made possible.
This series equip a galvanized coating covered epoxy painted structure, providing a longer life time and aesthetics.
- Customized controller option
- High-quality fiber material
- Exceptional temperature uniformity
- Table top or self-standing design
- Hand fitted brick-on-brick seal
- High level temperature uniformity
- Short heating times
- High quality heating elements ensuring a long service life
- Electrical protection
- Precise, electric spindle drive with push button operation
- Working Temperatures of up to 1800°C
- System operation with solid-state-relays
- Intuitive controller user interface
- Over-temperature limiter for thermal protection
- Exhaust air opening in the of the furnace roof
- Adjustable air inlet through the floor
- Data logger with the software
- RS422/485 communication
- Protective Gas System and Connection
