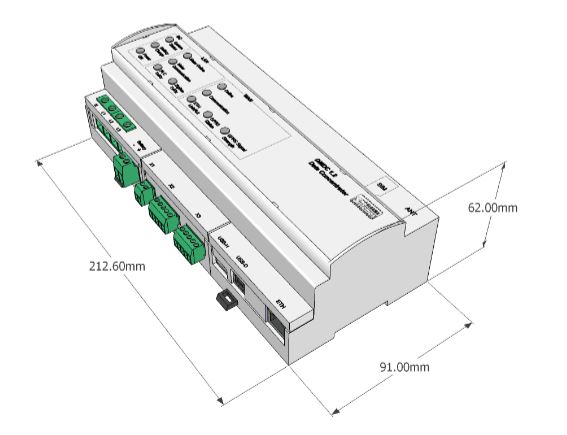

Elgama Sistemos - Model DMDC 1.2 -PLC Intelligent Data Concentrator
FromUAB NAVITUS LT
Intelligent data concentrator DMDC 1.2 is used in the smart energetic resources (electricity, water, gas) AMI (Advanced Metering Infrastructure) systems. PLC (Power line communication) concentrator acts as a gateway between MDCS (Meter Data Collection System) and metering devices, it collects and stores metering data and statistics.
Most popular related searches
advanced metering infrastructure
metering system
metering infrastructure
advanced meter
advanced metering
meter reading
water infrastructure system
water metering system
gas meter
water metering
Intelligent data concentrator DMDC 1.2 is used in the smart energetic resources (electricity, water, gas) AMI (Advanced Metering Infrastructure) systems.
Used in residential areas for automated meter reading of up to 300 subscribers.
PLC (Power line communication) concentrator acts as a gateway between MDCS (Meter Data Collection System) and metering devices, it collects and stores metering data and statistics.
- Two way communication with meters:
- PLC data transfer via power line three phase or one phase installation
- Up to 300 metering devices
- Communication with MDCS
- Ethernet
- GPRS/3G
- Runs automatic scheduled tasks and stores the data to an internal database or transfers it to MDCS
- Reports alarms and errors from meters to MDCS
- Supports meters parameterization function
- Transfers control commands and messages from MDCS to the meters
- Performs an automatic meter clock synchronization
- Performs self and meters firmware update
- Discrete I/O (may be used for the electrical cabinet security function)
- In case of a power loss, may still function from an external backup battery and transfer the alarm and data to MDCS
