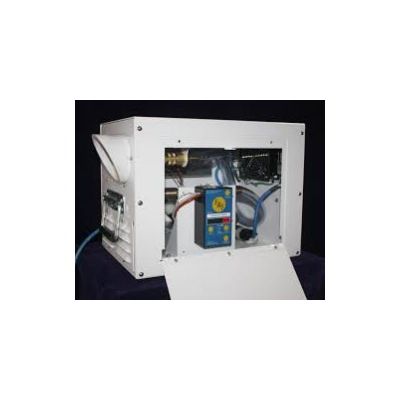

F&J - Model DF-EDL-28BE -Elite Digital Light (EDL) Air Sampler (220V)
F&J Model DF-EDL-28BE is a powerful small foot print light weight AC/DC powered air sampling system operable from a line power source. This powerful air sampler is light weight for a low volume air sampler available having similar flow rate capacity. The pump is mounted within a weather resistant aluminum environmental enclosure having four rubber feet. Handles are provided on the enclosure to facilitate transportation. The enclosure rating is IPX3.
The DF-EDL-28BE air sampler is well suited for various types of air sampling applications such as REMP, plant emissions and work area monitoring programs. It can also be utilized in remote air sampling applications powered from batteries charged by solar panels or wind turbines with an optional DC external power connector.
This unit is designed for continuous indoor or outdoor use. This unit can be adapted for tripod mounting if desired. Please consult the product specifications for the design temperature range and the installation category.
The typical operating flow range is 1 to 5 CFM (28 – 142 LPM).
- Precision machined DP flow sensor
- State-of-the-Art electronics
- Flow rate and volume measurements corrected to factory settable Reference Temperature and Pressure
- Automatic electronic flow control
- Display in English or various metric units
- RS-232 communication port
- Flow rate accuracy: ±4.0% Full Scale
- Auto zero calibration feature of flow sensor
- Auto shut off on time or volume
- Brushless Motor
- Maintenance free vacuum system
- 200 – 240 VAC; 50/60 Hz, 1PH
- Pump Type: Centrifugal blower
- Maximum Capacity: 6.0 CFM (170 LPM) @ 0” Hg Pressure drop
- Ultimate Vacuum: 40” H2O (100mb) @ sea level
- Power Requirements: 200-240VAC; 50/60Hz; 7 amperes, single phase
- Circuit Breaker Protection: 10 amperes
- Electrical Cord: All temperature, 3 wire, 14 gauge
- Thermal Overload Protection: Furnished as an integral part of the motor
- Dimensions: 19”L × 12.5”W × 13” H (48×30.5×33 cm)
- Weight: 19.8 lbs. (9 kg)
- Installation Category: Pollution Degree 3
- Enclosure Rating: IPX3
- Electronic Specifications:
- Air Flow ± 4.0% of full scale
- Temperature ± 0.9ºF (0.5ºC)
- Barometric Pressure 1% over measured range
- Operating Temperature: 0º - 122ºF (-17º- 50ºC)
- Storage Temperature Range; -20º - 150ºF (-29º - 65ºC)
- Calibration: Operator calibration-verification 1 per year
- Communications Interface: Single RS-232
- Display: Bright LED (6 character, 1.2 cm H)
- Data Storage Device (P/N: 232FCDSD)
- 2+GB Secure Digital Card (P/N: 372239)
- Flash Card Reader (P/N: SDDR-199-A20)
