ElvaX - Model Basic -Energy Dispersive X-ray Fluorescence (EDXRF) Spectrometer
ElvaX Basic is a compact cost effective Energy Dispersive X-ray Fluorescence (EDXRF) spectrometer ideally suited for both qualitative and quantitative analysis of solids, liquids and powders in the element range from S (Z=16) to U (Z=92) in a wide range of concentrations.
Accuracy
With advanced hardware and comprehensive software, the EvaX Basic offers the most precise and accurate analysis of materials
Speed
Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech makes the ElvaX Basic the fastest Si-PIN diode based analyzer on the market
Stability
Thanks to the digiX-40 digital X-Ray source, automatic temperature correction, and automatic calibration adjustment, ElvaX Basic offers long-life reproducibility of the analysis without the need to re-calibrate the system
- Low cost
- High speed and accuracy
- Compact. Doesn’t occupy much space on a desk
- Ergonomic design
- High-performance analytical software included
ElvaX Basic is a cost effective high-performance solution to be applied in such spheres as jewelry, alloy sorting and express QC.
ElvaX Basic combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in minutes!
In the lab or in the production facilities, with ElvaX Basic you can get the performance and precision of an expensive powerful benchtop spectrometer at a considerably lower cost.

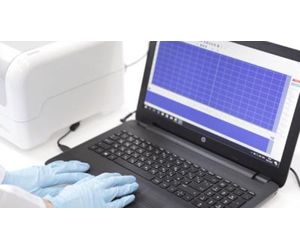

Just connect your ElvaX Basic to a PC via the USB port, switch it On, and run the ElvaX (TM) software. All you need to get the composition of your sample!
Our priority is to minimize downtime of our instruments by efficient and timely service and delivery.
Digital X-Ray Source digiX-40
- Anode: W
- Voltage: 40 kV
- Current: 200 uAmp
- Power: 4 W
X-Ray Detector
- Type: Si-PIN (optional SDD)
- Area: 6 mm2 (25 mm2 for SDD)
- Energy resolution: 165 eV at Mn Kα (140 eV for SDD)
Electronics
- DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
- MCA: 4096 channels
General
- Dimensions: 430 х 340 х 200 mm
- Weight: 13 kg
- Power supply: 90 – 240 VAC, 50/60 Hz
- Power consumption: 40 W
Software
- Operating system: Windows XP/Vista/7/8/10
- Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison
