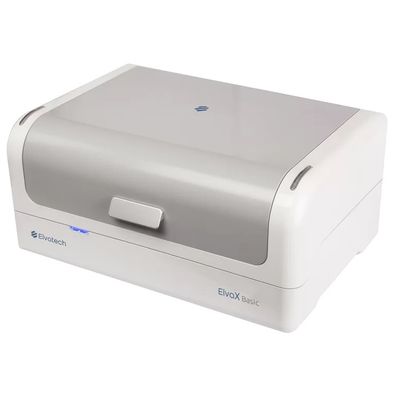

ElvaX Basic is a compact cost effective Energy Dispersive X-ray Fluorescence (EDXRF) spectrometer ideally suited for both qualitative and quantitative analysis of solids, liquids and powders in the element range from S (Z=16) to U (Z=92) in a wide range of concentrations.

ElvaX Pro is the next-generation benchtop X-ray fluorescence analyzer. It offers a new level of analysis accuracy, speed and detection limits for a wide range of elements from Na(11) to U(92) due to the new 60kV, 1000 μA X-ray tube and the ultra large area Fast SDD detector. Powerful hardware combined with unique software algorithms make ElvaX Pro a multipurpose lab instrument for elemental analysis of various materials including solids, powders, liquids etc.

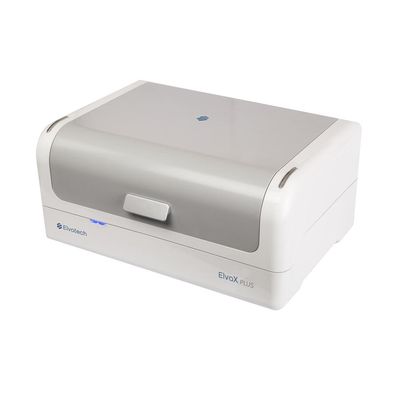

ElvaX Plus spectrometer is a desktop energy-dispersive X-ray fluorescence (EDXRF) analyzer with extended element range from Na (Z=11) to U (Z=92). The Helium purge system and the automatic primary filter changer combined with the large area SDD detector are used to allow effective registration of the light elements spectra. ElvaX Plus spectrometer is used for quantitative and qualitative analysis of the elemental composition of metal alloys, liquids, powders, food and biological samples, as well as samples deposited on surfaces or filters, in a wide range of element concentrations. Analyzer’s detecting limit is better than 1 ppm for most elements in a light matrix.

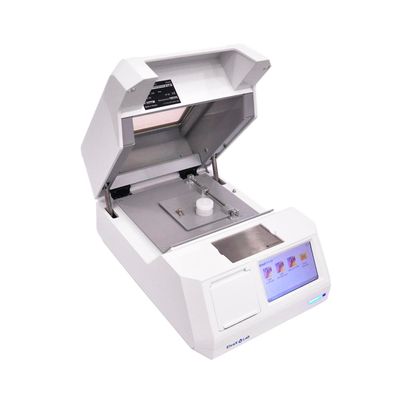

Designed for high-accuracy analysis of precious metals and jewelry. ElvaX Jewelry Lab is aimed on high-accuracy analysis of jewelry and precious metals. Measurement process only takes several seconds. The result is shown in both percent share and karats. ElvaX Jewelry Lab is also capable of detecting coatings and nonstandard alloys. This instrument can be operated either using the embedded computer with the high-resolution touchscreen display, or using a PC with ElvaX™ software installed. The integrated CCD camera makes it possible to target the required spot of the sample undergoing analysis.

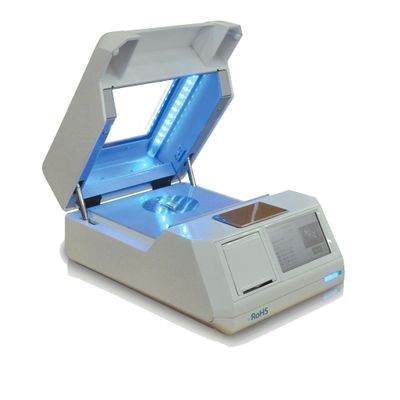

The ElvaX RoHS analyzer is specifically designed to test consumer products for compliance with the RoHS directive. One of the key features of ElvaX RoHS is automatic chlorine correction of calibration, which takes into account the influence of chlorine content in plastics on measurement of heavy metals . This allows for the use of a single calibration to test objects made of various plastics (PVC, PE, etc.) and to avoid possible errors when analyzing products made of unknown materials. Another important feature of the analyzer is automatic correction of the effect of material thickness on the analysis results. The specialized ElvaX RoHS functions and high measuring speed make the device the best solution for this type of work.

ElvaX S Lab is designed especially for analysis of petrochemicals for sulfur content in wide concentration range from 2 ppm to 5%. Many international standards describe analysis method for sulfur in fuel and oil. Sulfur forms damaging sulfates in vehicle exhaust and pollute the atmosphere by sulfur oxides. Furthermore sulfur reduces fuel stability and effects on engine performance. Maximum permissible level of sulfur in fuel decreases from year to year. 2003/17/EC (or EURO VI) directive requires a maximum amount of sulfur in fuel of 10 ppm. ElvaX Sulfur in Oil analyzer fully meets the requirements of ASTM D4294, ISO 8754, ISO 20847, IP 336, ASTM D6445.

ProSpector 2 is our time-tested handheld XRF analyzer.  Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications.

ProSpector 3 is the next-generation handheld XRF analyzer. It offers a new level of analysis accuracy, speed, and detection limits. ProSpector 3 is the smallest and lightest handheld XRF on the market with an intuitive and user-friendly software interface. Unique processing algorithms allow analyzing various types of materials including alloys, ores, soils, plastics, automotive catalysts etc.

An instant on-site elemental analysis is one of the necessities of the modern mining industry. ElvaX Geo offers you accurate data and ease of operation during geo-exploration or quality assurance. The instrument is designed specifically for long non-stop convenient operation. The unique 800 mm2 analytical spot analysis increases averaging of inhomogeneous samples. A composite pole helps you keep a comfortable body position during operation and enables to analyze hard-to-reach places. This form factor allows for uninterrupted measurement during slow walking while measurement results are communicated to the operator through headphones. ElvaX Geo is operated through a PDA in a protective enclosure, which can be put underneath outer garment in case of extreme climatic conditions. The Li-Ion Battery can be hidden as well.
