ElvaX - Model Pro -Benchtop X-ray Fluorescence Spectrometer Analyzer
ElvaX Pro is the next-generation benchtop X-ray fluorescence analyzer. It offers a new level of analysis accuracy, speed and detection limits for a wide range of elements from Na(11) to U(92) due to the new 60kV, 1000 μA X-ray tube and the ultra large area Fast SDD detector. Powerful hardware combined with unique software algorithms make ElvaX Pro a multipurpose lab instrument for elemental analysis of various materials including solids, powders, liquids etc.
Accuracy
With innovative hardware and unique software algorithms, the EvaX Pro offers the highest precision and accuracy of elemental analysis for a whole range of analytical applications
Speed
Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the ultra large area Fast SDD detector makes the ElvaX Pro the fastest XRF analyzer on the market
Stability
Thanks to the digiX-60 digital X-Ray source, automatic temperature, and pressure corrections, and automatic calibration adjustment, ElvaX Pro offers long-life reproducibility of the analysis without the need to re-calibrate the system.
- World’s fastest XRF analyzer (throughput above 400 000 cps) – highest accuracy and excellent precision within the shortest measurement time
- 60 kV X-ray tube voltage allows to analyze rare earth elements using K-series and consistently improves sensitivity to the high-energy elements from Pd (Z=46) to Ba (Z=56)
- Up to 1000 μA X-ray tube current improves accuracy and detection limits for light elements (Na, Mg, Al, Si, P, S) and allows to use small-size collimators (<1mm) for small spot analysis
- Motorized collimator changer for small spot analysis of jewelry, welds etc.
- Helium purge feature improves sensitivity to light elements (Na, Mg, Al, Si, P, S) several times
- 16-position automatic sample changer increases the productivity of your lab
- Sample spinner for analysis of inhomogeneous samples
- Excellent calibration stability, compensation of ambient temperature and pressure influence
- High-resolution CCD camera for precise sample positioning
ElvaX Pro is the most powerful EDXRF spectrometer among the ElvaX Family for the most demanding users. It offers excellent performances for the light elements analysis, as well as for the high energy elements including the rare earth.

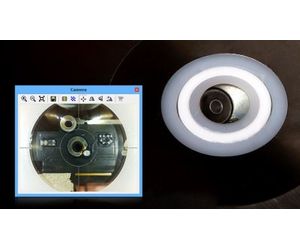

The high resolution CCD camera combined with the automatic collimator changer offers simple positioning and local analysis of jewelry, welds and small objects. The powerful X-ray tube and ultra large Fast SDD provide high count rate and short measurement time even with collimators less than 1 mm.

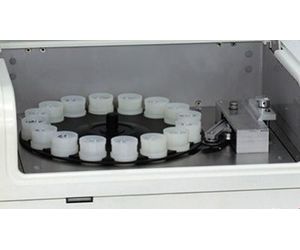

The automatic 16-positions sample changer coupled with the fast measurement increases the productivity of your lab up to 1000 samples per workday.
Digital X-Ray Source digiX-60
- Anode: W, Rh, Ag
- Voltage: 60 kV
- Power: 12 W
- 8 position filter changer
- 5 position collimator changer
X-Ray Detector
- Type: Large area Fast SDD
- Area: 40 mm2
- Energy resolution: 130 eV at Mn Kα, 85 eV at Al Kα
- Count rate: 500 000 cps
Electronics
- DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
- MCA: 4096 channels
General
- Dimensions: 430 х 340 х 200 mm
- Weight: 18 kg
- Power supply: 90 – 240 V, 50/60 Hz
- Power consumption: 50 W
Software
- Operating system: Windows XP/Vista/7/8/10
- Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison
