EMBIO - Model B.EL.D -Multi-Use Handheld Chemical Analyzer

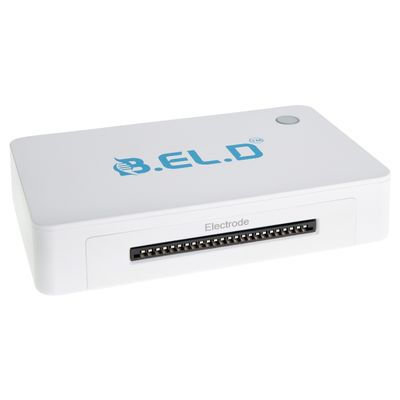

B.EL.D. (Bio Electric Diagnostics), is a multi-use handheld chemical analyzer. B.EL.D. device and its software is one of the very few multi-purpose portable chemical analyzer systems that can detect bacteria and other harmful chemicals in food accurately, on the spot, and within minutes. In addition, B.EL.D can be used in various industries as a stand-alone system for medical, environmental, and chemical applications according to the potentiometry principle.
- Wireless portable chemical analyzer
- Up to 8 hours on one charge
- More than 100* tests per charge cycle
- Can be used at any location
- 99% accuracy
- Get results in 3 min in the app
- Can be used by employee with no scientific background
- User friendly software
- Monitor from any device
*number of tests varies on the environment, the user speed and the battery health of the device
The working principle of the device is an open circuit potential (OCP). The system uses high-precision Analog-to-digital (A/D) converters to measure electrical signals from cells used as biorecognition elements, enabling high-performance control, parallel measurements, wireless transmissions, and high-speed testing.
The B.EL.D can also be used as a stand-alone system -without the need to use cells as biorecognition elements- for numerous environmental, chemical, and medical applications according to the potentiometry principle.
The device can measure real-time changes in the electrical properties of cells (up to eight simultaneous measurements) from eight carbon-screen printed electrodes (working electrode: carbon/gold, reference: Ag / AgCl) to a disposable sensor strip.
The system connects via Bluetooth to a smartphone, thus allowing the end–user to be informed immediately of any analysis result.
FOOD SUPPLY CHAIN:
Pathogens monitoring in food supply chains like meat and poultry, dairy, ready to eat, salads, organic growers, and more.
HEALTHCARE:
Infectious disease monitoring in Healthcare institutions, Hotels and Resorts, Offices, Educational institutions, and Airports. Read more about CovBELD
ENVIRONMENTAL:
Environmental monitoring applications such as water filtration systems and ballast water management systems in maritime transport. Read more about EnviroBELD.
Package contents
BELD device, Poweradapter, Cable USB-C, Screen-printed electrodes (SPE) 10pcs, Quick Start Guide, Warranty Card.
Functions
The B.EL.D Kit is an all-inclusive ultra-high, ultra-selective screening system that can be used to analyze any substance according to the potentiometry principle.
Wireless interfaces
Bluetooth® 5.2 with BLE, NFC-A
Battery
1000mAh Li-polymer
Power adaptor
Input: 100-240VAC50/60Hz. Output:5VDC, max2A USB-A.
Device power input
5VDC USB-C. Max. charging current 0.5A
Electrode
8-channel Carbon/Gold screen printed electrodes
Casing
White PC Makrolon® 2858, UV Stable (medical grade)
Dimensions
130 ? 80,3 ? 29,9 mm
Device life duration: 4 years
Warranty: 2 years, Battery warranty: 1 year
