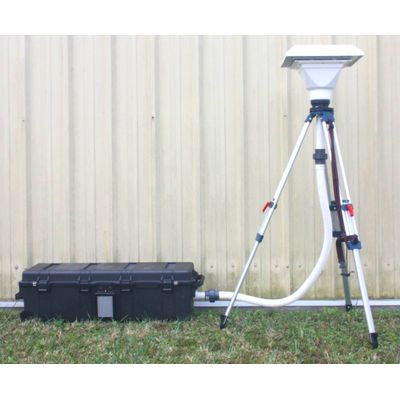

Model GAS-ERHV-DTE -Emergency Response Mobile High Volume Air Sampling System
The GAS-ERHV-DTE Series Air Sampling Systems are designed for temporary or emergency response continuous air sampling applications. The GAS-ERHV-DTE Series Air Samplers feature a brushless motor with electronic motor speed control that maintains a user selectable flow rate. The flow rate range attainable through the filter media is dependent upon the air porosity of the filter media. Flow rates as high as 119 m3/hr. (70 CFM) are attainable with certain some glass fiber filter media. The GAS-ERHV-DTE Series design accommodates rapid field service and component replacement.· Precision machined DP flow sensor
· State-of-the-Art electronics
· Vacuum fluorescent display (VFD); 4 lines×24 characters
· Flow rate and Volume measurements corrected to operator selectable Reference Temperature and Pressure
· Automatic flow control
· Operator selectable units of measurement
· Dual RS-232 communication ports
· Flow rate accuracy: ±3.0% Full Scale
· Auto zero calibration feature of flow sensor
· Continuous or periodic sampling mode
· Multiple operator selectable data storage rates
· Display of Multiple on-board calculations
· Powerful 1100 Watt motor
· Meets or exceeds the USEPA requirements in 40CFR50 Appendix B
· 220-240VAC; 50/60Hz, single phase
· Display of data in English or metric units by selection
· Automatic shut off of system on totalized volume or elapsed time
· Real time clock with battery backup
· Various data storage options
· Dual password protection
Operator password
System Administrator password
· Periodic sampling scenario based on periods within a week selectable by the user

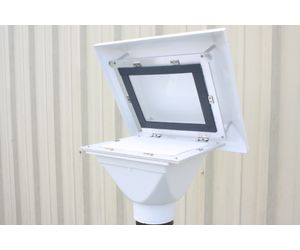

· Utilization of 8”×10” (20,3×25,4 cm) rectangular filters
· Vacuum Fluorescent Display; 4lines × 24 characters
· Operator Selectable Temperature & Pressure for data correction to standard condition.
· Dual RS232 and one USB (Type B) communication ports
