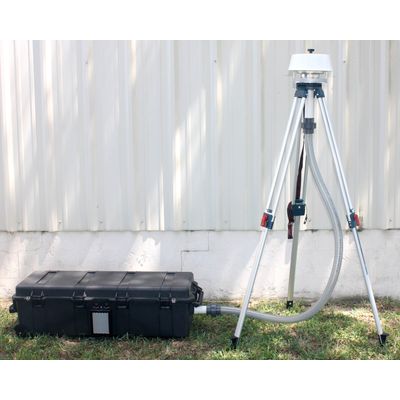

Model GAS-ERHV-DTE-CFH -Emergency Response Mobile High Volume Air Sampling System
The GAS-ERHV-DTE-CFH Series Air Sampling Systems are designed for temporary or emergency response continuous air sampling applications. The GAS-ERHV-DTE-CFH Series Air Samplers feature a brushless motor with electronic motor speed control that maintains a user selectable flow rate. The flow rate range attainable through the filter media is dependent upon the air porosity of the filter media and filter media dimensions. Flow rates as high as 119 m3/hr (70 CFM) are attainable with certain glass fiber filter media. The GAS-ERHV-DTE-CFH Series design accommodates rapid field service and component replacement.· Precision machined DP flow sensor
· State-of-the-Art electronics
· Vacuum fluorescent display (VFD); 4 lines×24 characters
· Flow rate and Volume measurements corrected to operator selectable Reference Temperature and Pressure
· Automatic flow control
· Operator selectable units of measurement
· Dual RS-232 communication ports
· Flow rate accuracy: ±3.0% Full Scale
· Auto zero calibration feature of flow sensor
· Continuous or periodic sampling mode
· Multiple operator selectable data storage rates
· Display of Multiple on-board calculations
· Powerful 1100 Watt motor
· Meets or exceeds the USEPA requirements in 40CFR50 Appendix B
· 220-240VAC; 50/60Hz, single phase
· Display of data in English or metric units by selection
· Automatic shut off of system on totalized volume or elapsed time
· Real time clock with battery backup
· Various data storage options
· Dual password protection
Operator password
System Administrator password
· Periodic sampling scenario based on periods within a week selectable by the user

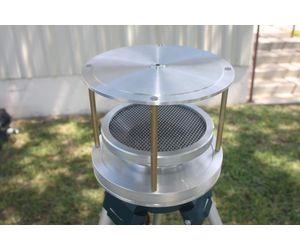

· Circular filter media: Filter holder options include 102mm, 110mm, 120mm, 125mm, 130mm, 140mm and 150mm.
· Vacuum Fluorescent Display; 4lines × 24 characters
· Operator Selectable Temperature & Pressure for data correction to standard condition.
· Dual RS232 and one USB (Type B) communication ports
