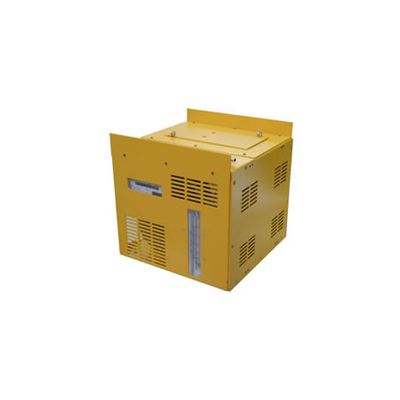

Dilugas - Emission Gas Dilution System

• Suction/pressure pump with a flow rate of up to 3 litres/minute
• Volume control by dry gas meter
• Temperature control directly at the meter
• Flow control by a precision rotameter
• Gas purification system with activated carbon trap
• Extraction trap device facilitated with quick connectors
• Epoxide powder painted aluminium structure

The UNI-EN 13649 Regulationsindicate three sampling methodsfor sampling of VOC(Volatile Organic Compounds).The DiluGas dynamic diluterenables the sampling to be performedwhen the conditions inpart 5.1.2.A trap located inside of the system, able to contain activatedcarbon purifies the air to be sentto the dilution chamber, eliminatingcross contamination caused by contaminatedambient air.The DiluGas™ diluter is set up for batteryoperation as described in the codePowerPack Cube, for complete electricalpower independence in the field.

• 220V-AC/12V-DC power supply (12V optional with PowerPack)
• Dimensions: 270x270x270 mm
• Weight: Kg.4.8

Codice: Prodotto

• 600/DL13649DGMK: Automatic dilution system with dilution chamber and connectors
