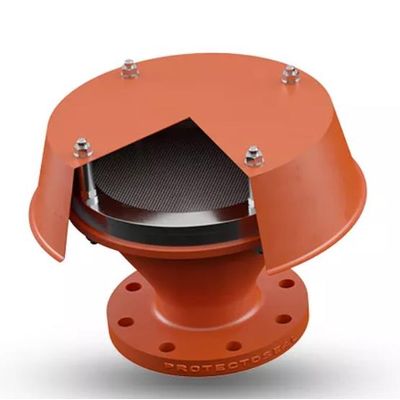

Protectoseal - Model AVC -End-of-Line Deflagration Flame Arresters
The Protectoseal AVC Series End-of-Line Flame Arresters are designed to be installed at the end of a pipeline or exit vent from a vessel to provide protection against atmospheric deflagrations. Vapors are allowed to escape into the atmosphere and air can be drawn into the tank through the E-Flow enhanced crimped ribbon arresting element. If an ignition source outside the tank (unconfined deflagration) is encountered, the flame arrester provides protection for the tank’s vapor space.
Most popular related searches
- Suitable for Hydrogen Applications.
- Replaceable element for easier maintenance
- E-Flow® technology provides exceptional flow capacities with minimal pressure drop
- Unique element design is less susceptible to fouling/clogging
- Lightweight for ease of installation
- Bird screen to prevent foreign object from entering tank
- Sizes: 1”(25mm) through 16” (400mm)
- Connections: ANSI 150 Flange
- Materials: Stainless Steel (No coating), Carbon Steel (Orange paint)
- Gas Groups: B, C & D | IIB & IIC
- Testing & Certifications: EN ISO 16852 and approved to ATEX Directive 2014/34/EU.
- Alternative connections available
- Additional material available
- Coatings
- PTFE
- Offshore Paint and Coating*
- Others on Request
- NACE conformance (all wetted parts)
*Adds a protective layer to the flame arrester. Primarily employed in offshore platform applications.
