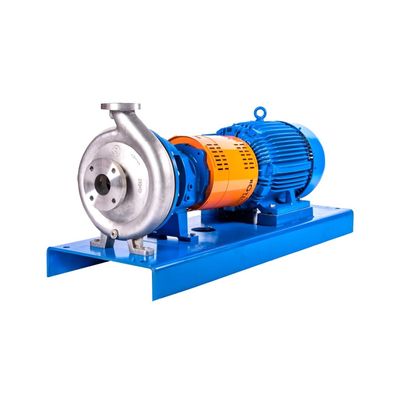

Rotech - Model 1196 Series -End-Suction Centrifugal Process Pump
Rotech Pumps ANSI 1196 Process Pumps are ASME B73.1 End-Suction Centrifugal pumps with an open impeller designed in a wide range of sizes and materials of construction for all process applications. Rotech 1196 Series ANSI Pumps are directly interchangeable with other manufactures of ANSI pumps i.e. Gould’s© 3196 series , Summit™ 2196 series , Griswold® 811 and many other ANSI pumps manufacturers. ANSI 1196 are able to use a variety of sealing options, and can be optimized for your pumping solutions in various industries and types of fluid. Rotech is a growing name in the ANSI pump, competing with a simple goal in mind: Quality, Commitment, Adaptability.
Most popular related searches
end suction centrifugal pump
process pump
ANSI pump
end suction pump
centrifugal pumping
centrifugal pump
centrifugal process pump
suction pump
boiler feed
centrifuge
- Manufactured to meet ANSI/ASME B73.1 standard
- Standard, Large and Taper Bore Stuffing box covers
- External impeller adjustment
- Open impeller design
- Various shaft and shaft sleeve combinations
- Wide Variety of Material of Constructions Like Ductile Iron, Carbon Steel, 316SS, CD4MCUN, Alloy 20, Hastelloy B, C and many other material of constructions
- Jacketed Casing and Stuffing Box Cover Available
- Finned-Tube Bearing Oil Cooler Available
- Max Flow Rate : 1,590 m³/h (7,000 gpm)
- Max Head : 275 m (900 ft)
- Max Temperature : 260°C (500°F)
- Oil & Gas
- Petrochemical & refineries
- Boiler Feed
- Condensate
- High Pressure Process
- Column Reflux & Column Bottoms
- Hot Oil
- Sea Water
