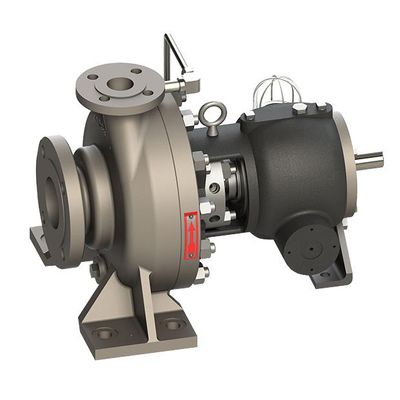

Hayward - Model N3 -End Suction Pumps
End suction, vertically split, single-stage pump for nuclear auxiliary and radwaste systems. Offers a rugged, reliable design, specifically for nuclear applications.
Most popular related searches
end suction pump
suction pump
vertical single stage pump
water injection pump
water pump
injection pump
pump component
radiation waste
vertical pump
water cooling
The N3 is an end suction, vertically split, single-stage pump. It has a back pull out design, with foot or centerline mounting arrangement, with a closed or semi-open impeller. It has a cantilever shaft/bearing arrangement designed for low stress/deflection and high bearing life, and is specifically designed for nuclear auxiliary and radwaste systems.
- Back pull out assembly for ease of maintenance
- Closed or semi-open impeller designs
- Heavy duty radial and thrust bearings
- Multiple single or mechanical seal options
- Fabricated steel baseplate that can be seismically qualified
Hayward Tyler End Suction Pumps are ideal for the following applications:
Safeguard Pumps
ASME Section III Class 2
- Seal water injection pumps
- Decay heat pumps (low pressure injection)
- Reactor spray pumps
- Class 2 pumps for any other service involving low NPSH or thermal shock applications
Auxiliary and Service Pumps
ASME Section III Class 3
- Spent fuel pumps
- Borated water pumps
- Component cooling pumps
- Rad waste pumps
- Any other Class 3 or non-code pump
