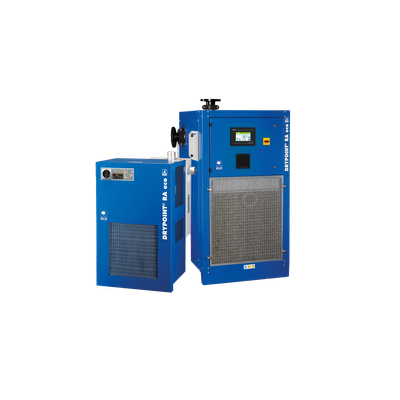

Beko - Model Drypoint RA eco -Energy-Saving Refrigeration Dryer
The new generation of refrigeration dryers combines striving for economics with ecological responsibility. Efficiency has been redefined with the DRYPOINT RA eco series: Due to the entirety of the technical characteristics, pressure loss, compressed air loss and energy consumption can be significantly reduced. With fluctuating compressed air consumption, energy consumption is now optimally tailored to the requirement. The DRYPOINT RA eco utilises tried and tested technology and extends it with an intelligent energy concept.
Tried and tested system, intelligently regulated
The DRYPOINT RA eco refrigeration dryer represents optimised resource efficiency: The area of application is where compressed air systems and products must be reliably protected against condensate and contamination. The drying is executed via cooling the air. The resulting condensate is efficiently discharged via the BEKOMAT without compressed air losses. Reheating reduces the relative humidity of the dried air to less than 30%. The absorbed amount of energy is adapted to the required dryer performance. This method not only saves energy costs but also protects the environment.
The biggest savings are from the energy which we do not consume.
Up to 55% cost savings compared to conventional refrigeration dryers in the first 5 years by utilising the intelligent control system.
The DRYPOINT RA eco refrigeration dryer series continues on from the already successful DRYPOINT RA concept with low pressure loss, optimum heat exchanger design and BEKOMAT. Based on this, we have now developed two new regulating concepts for the different installation sizes, which directly adapt the drying performance to the requirements and thereby considerably reduce energy consumption.
Energy efficiency by utilising an intelligent cycling system
For volume flows of less than 1000 m³/h, the DRYPOINT RA eco functions as a cycling dryer whereby the refrigerant compressor is switched off and on, based on demand. The intelligent cycling system is executed depending on the drying requirement and is regulated in such a way that the switch-off times can be optimally extended.
Optimal combination of energy saving and drying performance
For volume flows exceeding 1,000 m³/h, the DRYPOINT RA eco combines frequency regulating of the refrigerant compressor with cycling operation. At these high output rates, the fan is also frequency-regulated, resulting in optimised dryer performance combined with lowest possible energy consumption.
