nergya Cables HV/EHV Plant is state of the art in design and construction which constitutes of a large hangar construction for normal operations & of 400m² tower based for special HV/EHV cables processing operation. The tower contains the latest CV lines technology. These lines (CV: Continuous Vulcanizing) are the best machinery for insulating the HV/EHV cables applying the triple layer (Inner semiconductor + XLPE insulation + outer semiconductor) via extrusion operation in one shot with sealed curing of the material & cooling afterwards thus eliminating possible contamination sources & defects in doing the same operation in a series of operations.

Most popular related searches

material flow control

contaminant source

contaminants removal

Also presenting the first of its kind in KSA – the VCV line (Vertical Continuous Vulcanizing). It is extended over 132m of height in the tower ensuring that the eccentricity of the cable & material uniformity on the conductor is of highest precision through gravity material flow control, in addition to existing CCV lines for lower voltages (Continuous Centenary Vulcanizing)

Conductor Type : Copper/Aluminium
Conductor Construction : Circular Stranded Compacted upto 630 Sq. mm & Segmental up to 2500 Sq. mm (Miliken Conductors)

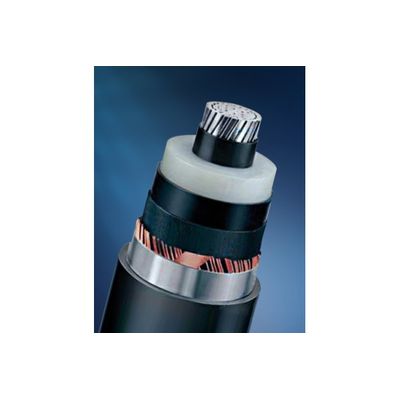

Description : CU/XLPE/CWS/LAT/PE or CU/XLPE/LEAD/PE or CU/XLPE/CWS/LEAD/PE
Rated voltage : 66 KV, 69 KV, 110 KV, 115 KV & 132 KV
Sizes : Cu Conductor range from 630 mm2 up to 2500 mm2 & Al Conductor range from 300 mm2 up to 1000 mm2
Standard : IEC 60840 & as per customer specifications
Triple Extruded Layer : Triple extrusion of inner semi-conductor (Conductor screen) , Super Clean XLPE Insulation, and outer semi-conductor (Insulation Screen)
Metallic Screen : Copper Wire Screen/Lead Sheath/ or both in combination
Outer Jacket : PE (LLDPE, LDPE, MDPE, HDPE)
Packing : Returnable Steel Drum
