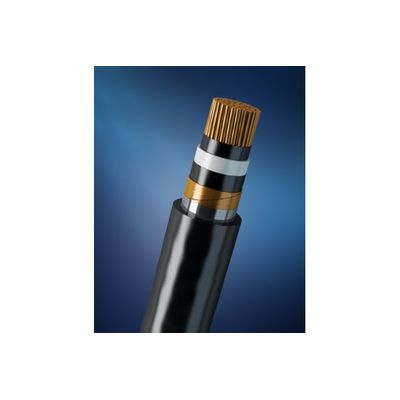

Energya CablesMidium Voltage Cable

SHARE

Energya Cables SA, CCV Line is used for Triple Extrusion. This Process uses Nitrogen (Dry) Curing method that prevents saturating the insulation with water, thus eliminates the possibility of voids generation there, also enrich excellent Electrical Properties, certain mechanical and chemical properties are also enhanced (i.e.Oil Resistance at Elevated Temperatures).

Most popular related searches
  • Conductor Type : Copper/Aluminium
  • Conductor Construction  : Circular Stranded Compacted as per IEC 60228
  • Description : CU/XLPE/PVC or AL/XLPE/PVC
  • Rated voltage : 3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV
  • Sizes : Up to 1000 Sq. mm
  • Standard : IEC 60502-2
  • Triple Extruded Layer : Triple extrusion of inner semi-conductor Bonded(Conductor screen) , XLPE Insulation, and outer semi-conductor Strippable/bonded (Insulation Screen)
  • Metallic Screen : Copper Wires/Copper Tape
  • Water Sealing : Radial Water Sealing AL-PE or Longitudinal Water Sealing (Upon Customer Request)
  • Bedding : PVC compound/LSHF/PE
  • Outer Jacket : PVC (WIth Flame, Oil, Sunlight, UV Resistance)   /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)
  • Packing : Non-Returnable wood drums or Steel Drum
