ENVEA - Model HC51M -Dilution Total Hydrocarbons FID Analyzer

Available in 2 versions for the simultaneous and continuous measurement of:

• THC (Total Hydrocarbons)
• THC / CH₄ / nmHC (Total Hydrocarbons, methane and non-methane)

• Measurements in the range of 0-1,000 ppm
• Graphic Liquid Crystal Display (LCD)
• Interactive menu driven software
• Auto-ranging
• User programmable ranges and time averages
• Built-in storage of 1 year average data
• Full remote emulation of the analyze
• Field proven technology and design
• Option: internal zero air / external hydrogen generator, internal nmHC convertor / fluid drain
• High sensitivity, stable, linear FID detector
• LCD display with synoptic flow diagram display, real time calibration graph
• Built-in serial interface (RS232/RS422)

• Continuous indoor and outdoor air quality monitoring
• Stationary and mobile AQMS laboratories
• Industrial fence-line and field monitoring
• Measurement of impurities in industrial gases (O2 or CO2)
• Continuous emissions monitoring (CEM) by dilution
• Measurement Campaigns and Monitoring Studies…

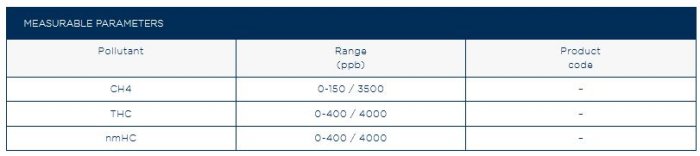

Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
(*) Min/Max based on 100/200 Dilution Rate (other ranges & dilution rates available upon request)

Technical specifications

• Sampling technology: Dilution
• Sample transfert: non heated polytube
• back flush function: YES
• span injection: YES
• Built-In O2 option: NO
• Serial link communication: RS232 / RS422
• Other Communication: Ethernet
• Analogue OUTPUTS: YES (x 3)
• Analogue INPUTS: NO
• Dimensions (mm): • Version (19” Rack):
• 483 x 545 x 133 mm (D x W x H)

Main Options:

• Internal zero air purifier module
• External air compressor
• Internal converter for measurement of methane and non methane hydrocarbon
• Special version for measurements in pure oxygen or in pure CO2
• External H2 generator
