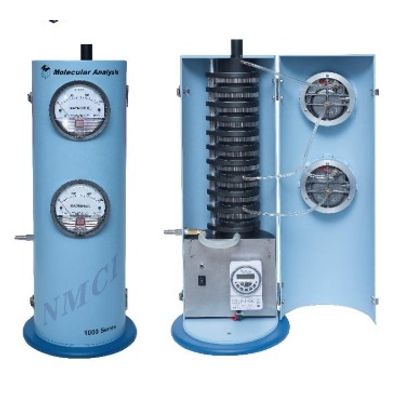

Envi - Model 1000M -NCTU Micro-orifice Cascade Impactor - NMCI

SHARE

These cascade impactors are designed for sampling and collecting size-fractionated aerosol particle samples for gravimetric and or chemical analyses. That preferred by aerosol researchers worldwide for environmental and laboratory research.

Most popular related searches
cascade impactor
aerosol particle sampling
chemical analyzer
aerosol particle
chemical analysis
aerosol research
particle sampling
cleaning nozzle
aerosol research environmental
sample collection

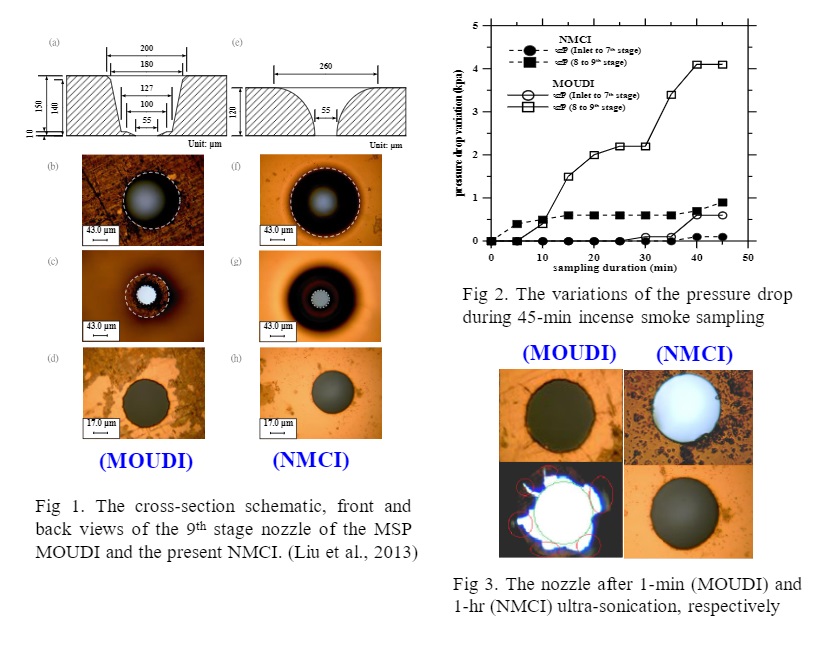

The new nozzle plates with smooth and sturdy structure fabricated by the LIGA process (Lithography, Electroplating- and Molding) are installed on the 7th-10th stages of the NMCI. The new nozzles show great performance on preventing nozzle clogging and allow for ultra-sonication to clean nozzles thoroughly. The particle collection efficiency curves of the NMCI have cutoff diameter rfpa50 that match well with the nominal values given in Marple et al. (1991).
