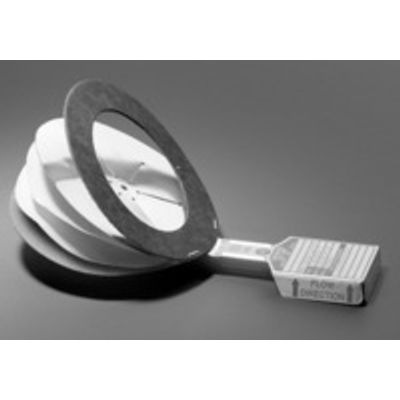

Enviro-Seal Rupture Disc
The ENVIRO-SEAL Rupture Disc is designed to provide economical protection for low pressure atmospheric storage vessels and to isolate the downstream side of pressure relief valves and other equipment from corrosive environments.
- Nominal Size Range: 2 " - 36 " ( 50 mm - 900 mm )
- Burst Pressure Range: 1 psig- 59 psig ( 0,069 barg - 4,07 barg )
- Recommended Operating Ratio: 50 % of the rupture disc`s rated (stamped) burst pressure.
- Seating Configuration: Flat Seat
- Service: Liquid or Gas
- B.D.I. Alarm System Compatible? : Yes
- ASME Code Symbol Stamp Available? : Yes
- Materials not indicated or shown may be available by special design. Contact the factory for more information. Only recommended for safety relief valve isolation on the downstream side of the valve.
(B.D.I.) Burst Disc Indicator
Continental Disc Corporation`s Burst Disc Indicator (B.D.I.) Alarm System is designed specifically for use with C.D.C. Rupture Discs. Upon disc rupture, the Burst Disc Indicator strip is severed, disrupting the flow of electric current through the strip. An attached alarm monitor can then transmit a warning and/or activate appropriate equipment.
Enviroguard Pipe End Covers
Protect free vent rupture disc piping and safety relief valve outlets from unwanted foreign material, rain, insects or birds by installing the ENVIRO GUARD pipe end cover. It is available for 90° or 45° pipe ends and may be purchased with an optional retrieval rope to retain cover near the location after venting.
