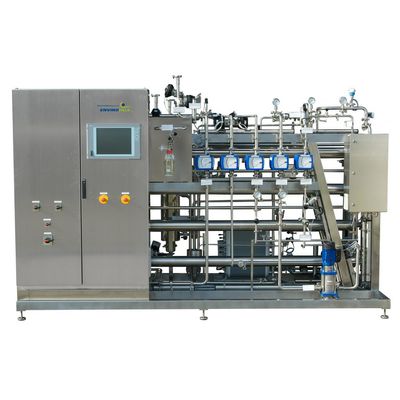

EnviroFALK - Water Purifier System
The production of purified water is subject to stringent rules and specifications that must be strictly observed, placing exacting demands on system design. EnviroFALK Pharma Water Systems supplies PW systems completely made of stainless steel or optionally of PVDF-HP, and places the design focus on maximum microbiological safety and optimised efficiency.
Your system: based on feed water quality, pre-treatment and product requirements
Reverse osmosis units are at the heart of all pharmaceutical water treatment systems – as a physical and robust barrier to ions, organic impurities and micro-organisms. Downstream electrodeionisation (EDI) removes residual ions and ensures that the required conductivity limit is observed. The system is designed with a critical assessment of the local tap water quality and the customer-specific process requirements in mind.
- Efficiency/system recovery
- Maintenance-friendliness
- Individual product specifications
- Production flexibility
- Operating cost optimisation
BRINGING TOGETHER RELIABILITY AND EFFICIENCY MEANS DELIVERING THE BEST OF ENGINEERING – SOMETHING WE KNOW A THING OR TWO ABOUT!
The hydraulic design of the reverse osmosis unit determines the recovery and product quality. Both in RO-EDI and 2-stage RO units, a recovery of ≥ 90 % can be achieved by the addition of a concentrate treatment stage.
Our systems are consumption-controlled: If water demand is low, output is reduced. If the tank is full, the water circulates in the system, ensuring a constant flow through all product water pipes.
EnviroFALK PharmaWaterSystems systems ensure compliance with all regulations and specifications, while keeping operating costs low. We also offer an all-round service programme with 24/7 service, emergency service, inspection, and remote maintenance mode.
- 316 L stainless steel, aseptic connections in accordance with DIN 11864
- As an alternative: PVDF-HP in BCF welding-technology
- Complete hot water sanitisaiton
- Concentrate treatment to reduce waste water
- Volume-controlled: 10-100%, additional CO2 feed in standby phases
- Modular design makes it easy to increase capacity
