LNI - Model 010-020 -Environment H2 Sensor Kits
FromLNI Swissgas

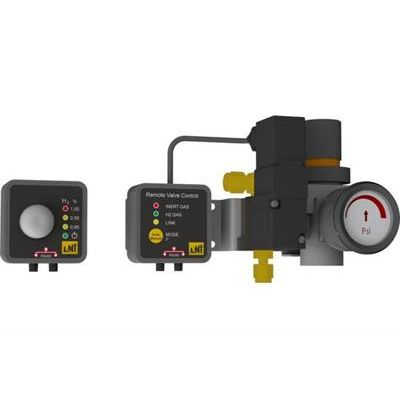

This H2-SENSOR Kit is a security system that constantly detects the amount of Hydrogen present in the working environment of the GC and blocks the Hydrogen generation if it detects an amount greater than the safety threshold. The 6940.00.055 controller reads the percentage of Hydrogen measured by the sensor 6940.00.060 and, if the value exceeds the threshold alarm, the Controller deactivates the solenoid valve in the 6940.00.056 block. The alarm can be signaled to a PC and to a remote device.
Most popular related searches
H2S monitoring
lower explosive limit
hydrogen sensor
workplace monitoring
sensor system
security system
pressure regulator
solenoid valve
hydrogen generator
H2S
- Continuous monitoring of the working environment
- Compatible with all GCs
- Simple installation
- Simple calibration
- Acoustic and optical alarms
- Potential explosion risks eliminated
- Low operating costs
- GC working environment
- All environments where Hydrogen is used
Models: 6940.00.050
- 6940.00.055
- Power Supply Voltage: 12 VDC +/- 5%
- Power Supply Current: 0.8 A use with OPT.H2.SENS.VB.V2
- Valve output: Open collector
- 12VDC/500mA
- Ambient temperature: 5-35°C (41-95°F)
- Ambient Humidity (max, non condensing): 80% at 25°C (77°F)
- IP rating: IP20
6940.00.056
- Hydrogen Inlet pressure: 1 to 9 bar
- Inert Inlet pressure: 1 to 10 bar
- Pressure regulator: 1 to 9 bar
6940.00.060
- Hydrogen Sensitivity Range: 0.01% to 1.00% by hydrogen volume (25% LEL, Lower Explosion Limit)
- Accuracy: ± (5.0% of F.S. + 1000ppm)
- Typical Response Time: less than 20 sec
- Power Supply Voltage: From 9VDC to 28VDC
- Communication port: RS-485
- Protocol: MODBUS-RTU
- Calibration Interval: 1 year (suggested 180 days)
- Hydrogen Sensor Technology: Dioxide semiconductor
- Product Life Expectancy: 10 years
- Body temperature range: -10 °C to 40 °C
