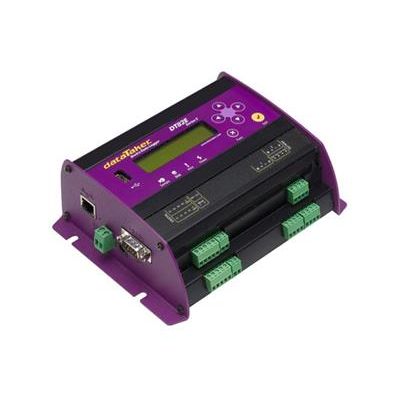

dataTaker - Model DT82E -Environmental Data Logger

• Low power design for remote applications
• Dual Channel Isolation Technology
• 1 SDI-12 input
• Serial ‘Smart Sensor’ port
• FTP for automatic data transfer
• Modbus for SCADA connection
• Up to 6 Analog (± 30V) sensor inputs
• USB memory for easy data and program transfer
• Internal modem (option)

The dataTaker DT82E smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT82E is a robust, stand alone, low power data logger featuring USB memory stick support, 18 bit resolution, extensive communications capabilities and built-in display.

The dataTaker DT82E’s Dual Channel concept allows up to 4 isolated or 6 common referenced analog inputs to be used in many combinations. With support for 1 SDI-12 sensor networks, Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT82E is a totally self contained solution.

Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82E flexibility.

With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232 and Ethernet, connect to the DT82E locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT82E, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your offi ce over the internet or wireless network, without the need for polling or specific host software.

• Research & Development
• Agricultural Research
• Weather Stations
• Total Energy Monitoring
• Environmental Monitoring
• Temperature Profi ling
• Thermistor Arrays
• Aquaculture
• Structural Monitoring
• Strain Gauges
• Process Monitoring
• Fault Identifi cation
• Machine Down Time
• Pressure
• Load Cells
• Flow
• Vehicle Testing
• GPS

• Max Sampling rate (Hz) 40
• Analog Inputs:
• 6 (2-wire common reference)
• 4 (2-wire isolated)
• 2 (3 and 4-wire isolated)
• Analog Input Range
• Voltage: ±30m,300m,3000m,50000mVDC
• Current: : ±30mA
• Resistance: 1MΩ
• Frequency: 450kHz
• Analog Voltage Accuracy : ±0.15 of Reading + (Full Scale Reading * 0.01%)
• Effective Resolution : 18 bits
• Analog Outputs : 1
• Analog Out Range Voltage: 10m-10000mVDC
• Current: 0-24mA
• Excitation
• Analog Channel: selectable 2µA, 250µA or 2.5mA precision current source, 4.5V voltage source or switched external supply
• Switchable 12V/5 regulated power output (max 300mA)
• Digital IO : 4 bi-directional channels
• Counter Low speed counters: 4 counters shared with digital inputs
• Dedicated counters: : 4 high speed
• RS232 host port : 1
• Ethernet Port : 1
• Data Storage : 128MB (upgradeable to 2GB)
• Protocols Supported : Modbus, FTP, HTTP, XML, SMTP, NTP and SDI-12
• CEM20 Expansion Module supported : No
• Power Requirements : 10-30 VDC
• Real Time Clock Accuracy:
• ± 1 min/year (0°C to 40°C)
• ± 4 min/year (–40°C to 70°C)
• Dimensions(mm) : 180x137x65
• Weight : 1.5kg
• Temperature Range : –45°C to 70°C
• Warranty : 3 years
