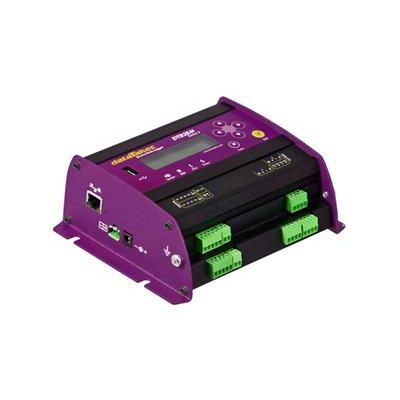

dataTaker - Model DT82EM Series 4 -Environmental Data Logger

• Dual Channel Isolation Technology
• Up to 6 Analog (± 50V) sensor inputs
• 8 fl exible digital terminals
• SDI-12 (multiple networks)
• Programmable Analog Output
• Integrated cellular modem
• Automatic data transfer via email or FTP
• Modbus for SCADA connection
• Web & FTP client / server
• USB memory for easy data and program transfer

Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels. Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82EM flexibility.

The dataTaker DT82EM intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT82EM provides reliable operation in virtually any environment.

The DT82EM’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Forget travelling long distances to get your data. Utilise the DT82EM’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

The DT82EM is confi gured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-configure your system remotely over the internet if required.

• Research & Development
• Agricultural Research
• Weather Stations
• Total Energy Monitoring
• Environmental Monitoring
• Temperature Profiling
• Thermistor Arrays
• Aquaculture
• Structural Monitoring
• Strain Gauges
• Process Monitoring
• Fault Identification
• Machine Down Time
• Pressure
• Load Cells
• Flow
• Vehicle Testing
• GPS

• Max Sampling rate(Hz) 40
• Analog Inputs
• 6 (2-wire common reference)
• 4 (2-wire isolated)
• 2 (3 and 4-wire isolated)
• Analog Input Range
• Voltage: ±30m,300m,3000m,50000mVDC
• Current: ±30mA
• Resistance: 1MΩ
• Frequency: 450kHz
• Analog Voltage Accuracy ±0.15 of Reading + (Full Scale Reading * 0.01%)
• Effective Resolution 18 bits
• Analog Outputs 1
• Analog Out Range
• Voltage: 10m-10000mVDC
• Current: 0-24mA
• Excitation
• Analog Channel: selectable 2µA, 250µA or 2.5mA precision current source, 4.5V voltage source or switched external supply
• Switchable 12V/5 regulated power output (max 300mA)
• Digital IO 4 bi-directional channels
• Counter
• Low speed counters: 4 counters shared with digital inputs
• Dedicated counters: 4 high speed
• Ethernet Port 1
• Data Storage 128MB (upgradeable to 2GB)
• Protocols Supported Modbus, FTP, HTTP, XML, SMTP, NTP and SDI-12
• CEM20 Expansion Module supported No
• Power Requirements 10-30 VDC
• Real Time Clock Accuracy
• ± 1 min/year (0°C to 40°C)
• ± 4 min/year (–40°C to 70°C)
• Integrated Cellular Modem
• Interfaces: EDGE, GPRS, GSM, WCDMA, HSUPA, HSDPA
• EDGE/GPRS/GSM Freq: 850/900/1800/1900 MHz
• WCDMA/HSUPA/HSDPA Freq: 850/1900/2100 MHz
• Dimensions(mm) 180x137x65
• Weight 1.5kg
• Temperature Range –45°C to 70°C
• Warranty 3 years
